Something interesting please post here (Metatrader)

Pucmola wrote: Sat Oct 17, 2026 9:09 am For those interested – a bit of SMC – super money clistire

What’s there to play around with?

More zones and signals Swing_Strength to 5–7
Fewer but more significant zones Swing_Strength to 15 and above
More BOS / CHoCH Structure_Strength to 3–4
Stricter zone break Break_Needs_Close = true ---- the zone only ends on close
More EQH / EQL Increase Equal_Tolerance to 0.25

What should I look at?

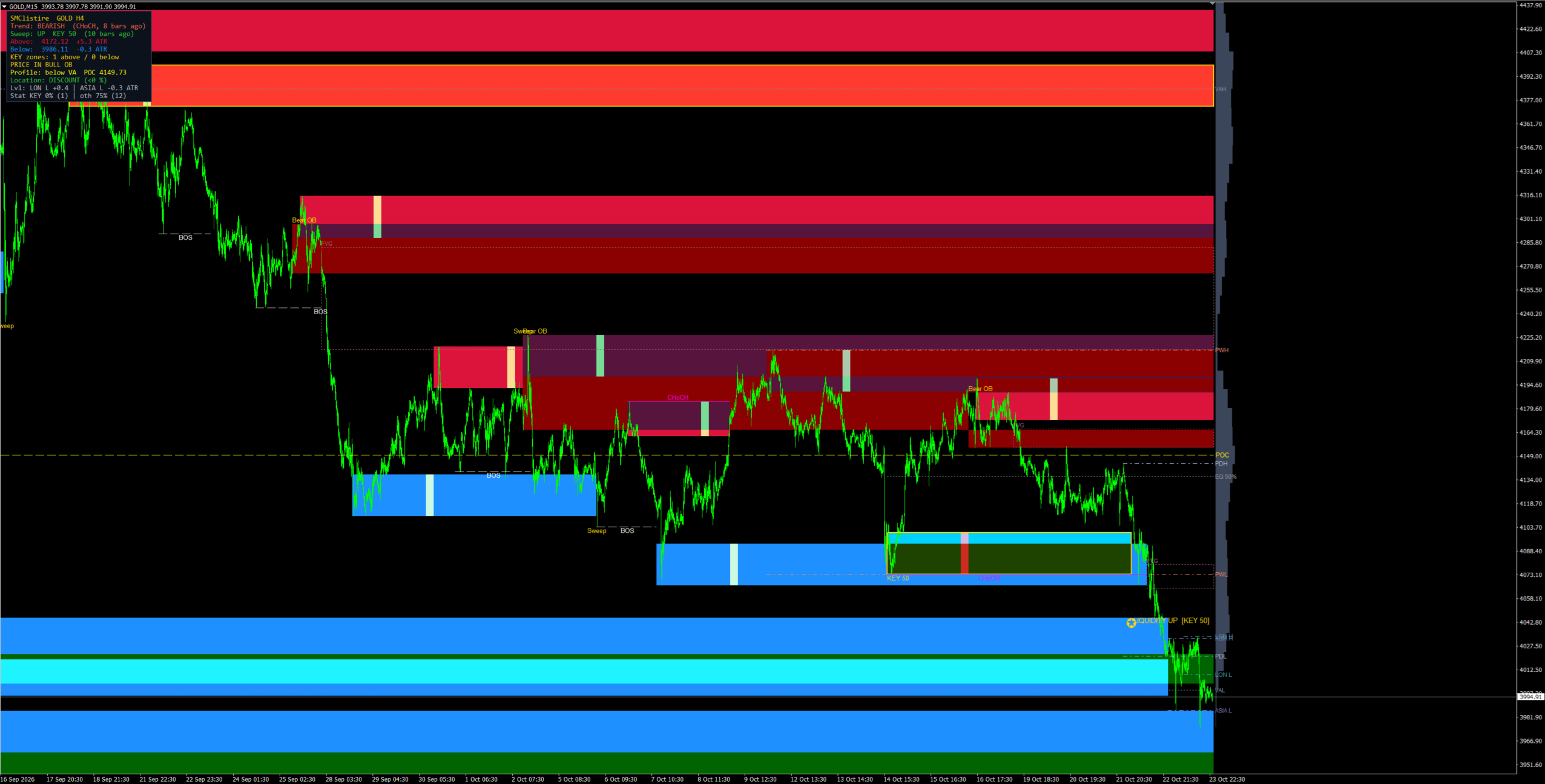

A: Sweep and return (bullish)

Price drops below the blue zone, an arrow with the text LIQUIDITY UP appears.
A Bullish CHoCH follows (close above the last swing high), which is a confirmation of the reversal.

A Bull OB forms. You get an alert when price returns to it for the first time.

If price closes below the OB, it disappears (it is mitigated) and the scenario is no longer valid.

Example B: Opposite direction (bearish)

Sweep of the red zone (text LIQUIDITY DOWN).

Then a Bearish CHoCH and a Bear OB forms.

The retest of the Bear OB is the zone you watch.

Example C: EQH / EQL

If two swing lows stop at the same level, an orange EQL stripe appears.

There are many stops below it, so a sweep is often expected there.

Nothing is chased at the level; you wait for the sweep and confirmation.

Example D: Distant zones

Zones that have not been broken and are far from price are areas where price may return later.

They serve as orientation and possible targets, not as a signal by themselves.

Example E: Confluence

The panel reported the trend BEARISH and the last break Bearish CHoCH.

The sweep of the blue zone with the text LIQUIDITY UP was therefore against the trend. Such a signal is weaker until a Bullish CHoCH arrives.

The strongest situations are those where several things align: sweep + CHoCH in the same direction + OB retest.

No indicator is a holy grail—except for you... enjoy.

Hello have mt5 version?
Thanks

Ahhbii98 wrote: Sat Oct 17, 2026 11:23 am Hello have mt5 version?
Thanks

Hi Ahhbii98, sorry, I didn't create an MT5 version—but you'll surely find plenty of more advanced versions for MT5 here on the forum.

...........After testing, I’d like to implement an update—it could look something like this: alerts for entering KEY zones, key level sweeps, PDH/L, PWH/L, Asian/London session highs/lows, entry decision-making based on discount/premium, buy/sell zones, and a dashboard showing the success rate of sweeps (I’d like this success rate to apply to everything, filtered by data). Also, bullish/bearish FVGs, a volume profile (a histogram on the right—or, if that’s not feasible, just the POC and VAH/VAL), and a feature to hide "weak" zones (using a scoring system based on swing volume, MFI, distance from the volume profile, etc.). The chart was simply too cluttered—let’s see if it becomes easier to navigate now.

Dual G Channel with a trend indication similar to the turtle channel

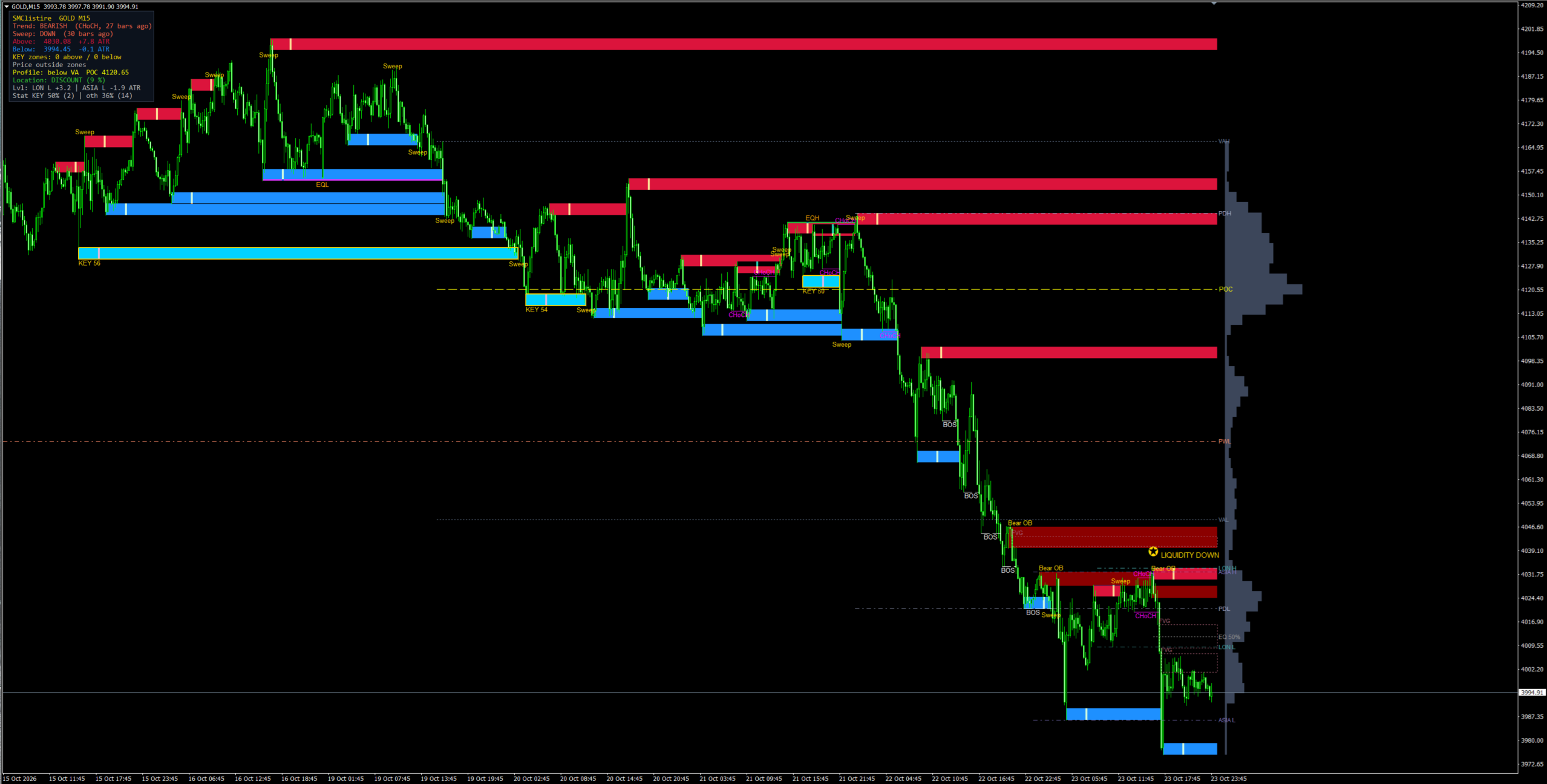

Hi, so here is the update to version 2...What can it do?......First, I would set up the key zones and session times... then I’d play around with the other things...
Liquidity Zones
Automatically identifies swing highs/lows and draws zones based on them (red = liquidity UP, blue = liquidity DOWN - no good for you? set Label_Shows_Expected- false).
A zone ends when it is breached (by a wick or a candle close – configurable).
Optionally displays zones that have already been breached.
Zone Scoring (0–100)
Assigns a score to each zone based on a combination of: swing volume (RVOL), volume profile, and money flow (MFI).
Categorizes zones into KEY, standard, and WEAK (weak zones can be hidden).
Key zones are highlighted with a distinct color and a gold outline.
EQH / EQL
Detects equal levels (Equal Highs / Equal Lows) within a specified tolerance and marks them with an orange band.
BOS / CHoCH + Order Blocks
Tracks market structure: Break of Structure (BOS) and Change of Character (CHoCH).
Creates an Order Block (the last opposing candle before an impulsive move) upon a break of structure.
Monitors Order Block mitigation and the initial retest (includes alerts).
FVG
Displays unfilled FVGs as a subtle dotted outline; filled FVGs can also be shown (optional).
Volume Profile
Calculates the POC (Point of Control) and Value Area (VAH/VAL).
Optionally draws the profile histogram to the right of the chart.
Key Liquidity Levels
PDH/PDL (Previous Day High/Low), PWH/PWL (Previous Week High/Low).
Highs/Lows of the most recent Asian and London sessions (on charts up to the H1 timeframe).
Alerts triggered when these levels are swept.
Premium / Discount
Calculates the 50% equilibrium of the most recent swing and indicates whether the price is in a premium or discount zone.
Sweep Detection + Alerts
Distinguishes between a sweep (a price pierce followed by a reversal) and a genuine breakout.
Alerts for: zone sweeps, breakouts, BOS/CHoCH, OB (Order Block) retests, entry into KEY zones, and sweeps of key liquidity levels.
Notification channels: pop-up, push notification, e-mail, and sound.
Sweep Statistics
Evaluates the performance of sweeps occurring at KEY zones versus those elsewhere (success = a price movement of one ATR in the expected direction).
Displays the success rate (as a percentage) directly within the panel.
Dashboard
Current trend and the most recent market structure break.
The latest sweep and the expected direction.
The nearest zone above/below the current price (including distance in ATR).
Number of KEY zones above/below the current price.
Current price location (Zone / OB / FVG).
Position relative to the Volume Profile and Premium/Discount zones.
Nearest key levels. Success rate statistics.
MTF
Calculations can be performed based on a higher timeframe than the one currently displayed on the chart (Multi-Timeframe).
