Python to MT5

Code: Select all

# import required python modules
import pandas as pd
import numpy as np
import matplotlib.pyplot as plt
import yfinance as yf
import math

print(yf.__version__)


# retrive OHLCV using YFinance
symbol = 'QQQ'
ohlcv = yf.download(
    symbol,
    start="2000-01-01",
    end="2026-07-11",
    group_by="Ticker",
    auto_adjust=False,
)
ohlcv = ohlcv[symbol]
ohlcv

# functions to implement indicators calculations

def rms(series, length):
    series = np.asarray(series, dtype=float)
    out = np.full(len(series), np.nan)

    for i in range(length - 1, len(series)):
        window = series[i - length + 1:i + 1]
        out[i] = np.sqrt(np.mean(window ** 2))

    return out

def supersmoother(price, period):
    price = np.asarray(price, dtype=float)
    out = np.full(len(price), np.nan)

    if len(price) < 3:
        return price.copy()

    Q = np.exp(-1.414 * np.pi / period)
    c1 = 2 * Q * np.cos(1.414 * np.pi / period)
    c2 = Q * Q
    a0 = (1 - c1 + c2) / 2

    # initialization
    out[0] = price[0]
    out[1] = price[1]

    for i in range(2, len(price)):
        out[i] = (
            a0 * (price[i] + price[i - 1])
            + c1 * out[i - 1]
            - c2 * out[i - 2]
        )

    return out

def adaptive_supersmoother(close, period0=20, rms_length=81):
    close = np.asarray(close, dtype=float)
    n = len(close)

    # outputs
    ss_adaptive = np.full(n, np.nan)
    ss_fixed = np.full(n, np.nan)
    period_series = np.full(n, np.nan)

    # initial pass (we update recursively)
    ss_temp = supersmoother(close, period0)

    roc1 = np.full(n, np.nan)
    roc = np.full(n, np.nan)

    for i in range(1, n):
        roc1[i] = ss_temp[i] - ss_temp[i - 1]

        # RMS normalization
        start = max(0, i - rms_length + 1)
        window = roc1[start:i + 1]
        rocrms = np.sqrt(np.mean(window ** 2)) if len(window) > 0 else 0

        if rocrms != 0:
            roc[i] = abs(roc1[i] / rocrms)
        else:
            roc[i] = 0

        roc[i] = min(roc[i], 2)

        period = period0 * (1 - 0.5 * roc[i]) ** 2
        period = max(period, 2)
        period_series[i] = period

    # Recompute adaptive SS properly (true recursive adaptive filter)
    ss_adaptive[0] = close[0]
    ss_adaptive[1] = close[1]

    for i in range(2, n):
        p = period_series[i - 1] if not np.isnan(period_series[i - 1]) else period0

        Q = np.exp(-1.414 * np.pi / p)
        c1 = 2 * Q * np.cos(1.414 * np.pi / p)
        c2 = Q * Q
        a0 = (1 - c1 + c2) / 2

        ss_adaptive[i] = (
            a0 * (close[i] + close[i - 1])
            + c1 * ss_adaptive[i - 1]
            - c2 * ss_adaptive[i - 2]
        )

    return {
        "adaptive_ss": ss_adaptive,
        "fixed_ss": supersmoother(close, period0),
        "roc": roc,
        "period": period_series
    }

def adaptive_supersmoother_series(close, period0=20, rms_length=81):
    return pd.Series(
        adaptive_supersmoother(close, period0, rms_length)["adaptive_ss"],
        index=close.index
    )


# function which encapsultes indicator call and signal generationr
def run_calcs(ohlcv):

    df = ohlcv[['Close']].copy()

    df['SS'] = supersmoother(df['Close'], period=20)
    df['ASS'] = adaptive_supersmoother_series(df['Close'])


    df['ASS OSC'] = df['ASS'] - df['SS']
    df['ASS OSC NORM'] = (df['ASS'] - df['SS']) / df['Close'].rolling(20).std()

    #df['Signal'] = np.where(df['ASS OSC'] > 0, 1,0)
    df['Signal'] = np.where(df['ASS OSC'] > 0.1, 1,
                    np.where(df['ASS OSC'] < -0.1, 0, np.nan))
    df['Signal'] = df['Signal'].ffill()

    return df

df = run_calcs(ohlcv)
df
def simple_plot(df):
    import matplotlib.pyplot as plt

    fig, (ax1, ax2) = plt.subplots(
        2, 1,
        figsize=(9, 6),
        sharex=True,
        gridspec_kw={"height_ratios": [3, 1]}
    )

    # -------------------
    # TOP: Price + filters + signal
    # -------------------
    ax1.plot(df.index, df['Close'], label='Close', color='black', linewidth=1.5)
    ax1.plot(df.index, df['SS'], label='SuperSmoother (SS)', linewidth=1.2)
    ax1.plot(df.index, df['ASS'], label='Adaptive SS (ASS)', linewidth=1.2)

    ax1.set_ylabel('Price')
    ax1.grid(True)

    # Signal on secondary axis (TOP)
    ax1b = ax1.twinx()
    ax1b.step(df.index, df['Signal'], where='post',
              label='Signal (ASS OSC > 0)', color='green', alpha=0.5)

    ax1b.set_ylabel('Signal (0/1)')
    ax1b.set_ylim(-0.1, 1.1)

    # combine legends (top)
    l1, lab1 = ax1.get_legend_handles_labels()
    l2, lab2 = ax1b.get_legend_handles_labels()
    ax1.legend(l1 + l2, lab1 + lab2, loc='upper left')

    ax1.set_title('Price + SuperSmoother + Adaptive SS with Signal')

    # -------------------
    # BOTTOM: Oscillator
    # -------------------
    ax2.plot(df.index, df['ASS OSC'], label='ASS - SS Oscillator', color='purple', alpha=0.8)
    ax2.plot(df.index, df['ASS OSC NORM'], label='ASS NORM- SS Oscillator', color='orange', alpha=0.8)

    ax2.axhline(0, color='black', linewidth=1)

    ax2.set_ylabel('Osc')
    ax2.set_xlabel('Date')
    ax2.grid(True)
    ax2.legend()

    plt.tight_layout()
    plt.show()
simple_plot(df['2026':])

Code: Select all

"""
Python code implementing concepts from Igor Durkin's article,
"The UniEMA: A Universal Exponential Moving Average," published in
Technical Analysis of Stocks & Commodities. This code is provided
for the magazine's Traders' Tips section.

Written by:
Rajeev Jain, September 2026
jainraje@yahoo.com

Complete source code:
https://github.com/jainraje/TraderTipArticles/

"""

# import required python modules
import pandas as pd
import numpy as np
import yfinance as yf

import matplotlib.pyplot as plt
import matplotlib.dates as mdates
from matplotlib.collections import LineCollection
from matplotlib.lines import Line2D

print(yf.__version__)

# get SPY price data from Yahoo Finance

ticker = 'SPY'
start_date = "1995-01-01"
end_date = "2026-09-22"

ohlcv = yf.download(
    ticker,
    start=start_date,
    end=end_date,
    #group_by="Ticker",
    auto_adjust=False,
    progress=False,        # suppress download progress output
)
ohlcv = ohlcv.stack('Ticker', future_stack=True ).reset_index().set_index('Date')

# uniema and rsi indicator functions

def uniema(price, length=14, poles=2, order=3,
           weight_factor=2.0, damping_factor=0.5):

    """Universal EMA with configurable poles, order, weight, and damping."""
    price = np.asarray(price, dtype=float)

    if length < 1 or poles < 1 or order < 1:
        raise ValueError("length, poles, and order must be >= 1")
    if price.size == 0:
        return np.array([], dtype=float)

    alpha = order * weight_factor / (
        length + order * weight_factor - 1
    )
    beta = 1 - alpha

    state = np.full((order, poles), price[0], dtype=float)
    result = np.empty_like(price)
    result[0] = price[0]

    for t in range(1, len(price)):
        value = price[t]

        for k in range(order):
            for j in range(poles):
                state[k, j] = beta * state[k, j] + alpha * value

                value = (
                    state[k, j]
                    if j == 0
                    else value + damping_factor *
                    (state[k, 0] - state[k, j])
                )

        result[t] = value

    return result


def rsi(close, length=14, method="WILDERS",
        poles=2, order=3, weight_factor=1.0,
        damping_factor=0.5):
    """RSI using Wilder or UniEMA smoothing."""
    is_series = isinstance(close, pd.Series)
    index = close.index if is_series else None
    price = np.asarray(close, dtype=float)
    method = method.upper()

    if price.ndim != 1:
        raise ValueError("close must be one-dimensional")
    if length < 1:
        raise ValueError("length must be >= 1")
    if method not in {"WILDERS", "UNIEMA"}:
        raise ValueError("method must be 'WILDERS' or 'UNIEMA'")
    if price.size == 0:
        result = np.array([], dtype=float)
        return pd.Series(result, index=index, name="RSI") if is_series else result
    if np.isnan(price).any():
        raise ValueError("close contains NaN values")

    change = np.diff(price, prepend=price[0])
    gain = np.maximum(change, 0)
    loss = np.maximum(-change, 0)

    if method == "WILDERS":
        poles, order, weight_factor, damping_factor = 1, 1, 1.0, 0.0

    args = (
        length, poles, order,
        weight_factor, damping_factor,
    )

    average_gain = uniema(gain, *args)
    average_loss = uniema(loss, *args)

    strength = np.divide(
        average_gain,
        average_loss,
        out=np.full_like(average_gain, np.inf),
        where=average_loss != 0,
    )

    result = 100 - 100 / (1 + strength)
    result[(average_gain == 0) & (average_loss == 0)] = 50

    if is_series:
        return pd.Series(
            result,
            index=index,
            name=f"RSI_{length}_{method}",
        )

    return result


def run_calculations(ohlcv):

    # Remove rows with missing closing prices before calculating indicators
    df = ohlcv.dropna(subset=["Close"]).copy()

    # Calculate UniEMA, standard Wilder RSI, and UniEMA-smoothed RSI
    df['UniEMA'] = uniema(df['Close'],15,2,3,2,0.7)
    df['RSI'] = rsi(df['Close'], 14)
    df['UniRSI'] = rsi(df['Close'], 14, "UNIEMA",2,3,1,0.5)

    return df

df = run_calculations(ohlcv)



# here is one example of how to generate trading signals from the
# uniema, unirsi indicators. there are many other ways.
def trading_logic(df):
    """
    Generate a long/cash trading signal using UniEMA trend direction
    and a UniRSI momentum regime.

    Signal 1:
        1 when UniEMA is rising; otherwise 0.

    Signal 2:
        1 when UniRSI rises above 50.
        0 when UniRSI falls below 45.
        Retains its previous state between 45 and 50.

    Combined signal:
        Enter long when both signals equal 1.
        Exit when both signals equal 0.
        Retain the current position when the signals disagree.
    """

    # Identify the current UniEMA trend direction
    df["Signal 1"] = np.where(
        df["UniEMA"] > df["UniEMA"].shift(1), 1, 0
    )

    # Create a UniRSI regime with 50/45 hysteresis
    df["Signal 2"] = np.where(df["UniRSI"] > 50, 1, np.nan)
    df["Signal 2"] = np.where(
        df["UniRSI"] < 45, 0, df["Signal 2"]
    )

    # Initialize in cash and retain the last confirmed regime
    df.at[df.index[0], "Signal 2"] = 0
    df["Signal 2"] = df["Signal 2"].ffill()

    # Enter when both trend and momentum are bullish
    cond_buy = (
        (df["Signal 1"] == 1) &
        (df["Signal 2"] == 1)
    )
    df["Signal"] = np.where(cond_buy, 1, np.nan)

    # Exit when both trend and momentum are bearish
    cond_sell = (
        (df["Signal 1"] == 0) &
        (df["Signal 2"] == 0)
    )
    df["Signal"] = np.where(
        cond_sell, 0, df["Signal"]
    )

    # Initialize in cash and hold the last confirmed position
    df.at[df.index[0], "Signal"] = 0
    df["Signal"] = df["Signal"].ffill()

    return df

df = trading_logic(df)

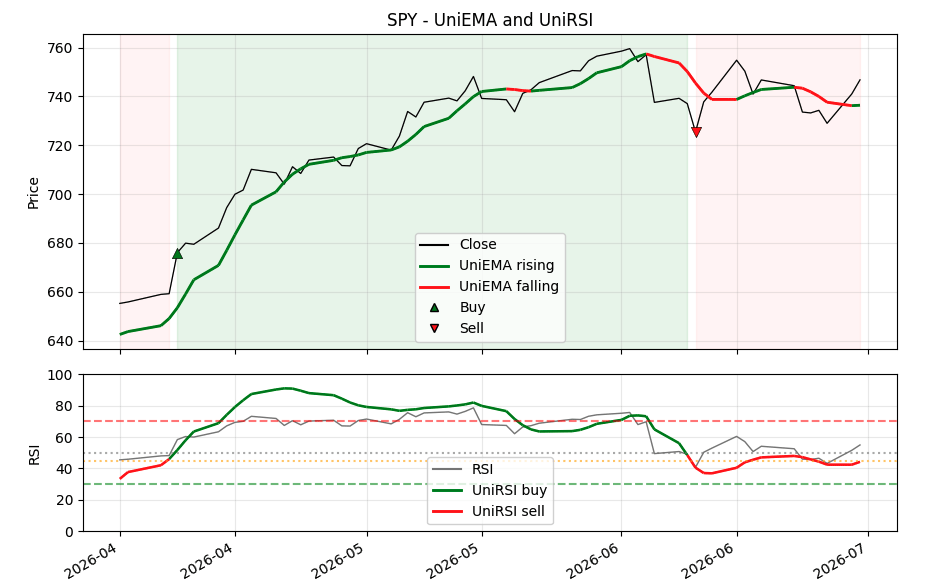

# Plot price with trend-colored UniEMA and trading signals,
# together with RSI and regime-colored UniRSI

def plot_signals(df, title="UniEMA and UniRSI"):
    dates = pd.to_datetime(
        df["Date"]
        if "Date" in df.columns
        else df.index.get_level_values(0)
    )

    x = mdates.date2num(dates)

    close = df["Close"].to_numpy()
    uniema = df["UniEMA"].to_numpy()
    rsi = df["RSI"].to_numpy()
    unirsi = df["UniRSI"].to_numpy()
    signal2 = df["Signal 2"].to_numpy()
    signal = df["Signal"].ffill().fillna(0).to_numpy()

    def colored_line(ax, x, y, colors, width=1.8):
        points = np.column_stack([x, y])
        segments = np.stack(
            [points[:-1], points[1:]],
            axis=1,
        )

        collection = LineCollection(
            segments,
            colors=np.asarray(colors)[1:],
            linewidth=width,
        )

        ax.add_collection(collection)
        ax.autoscale_view()

    fig, (ax1, ax2) = plt.subplots(
        2,
        1,
        figsize=(9, 6),
        sharex=True,
        gridspec_kw={"height_ratios": [2, 1]},
    )

    # --------------------------------------------------
    # Price panel
    # --------------------------------------------------

    ax1.plot(
        x,
        close,
        color="black",
        linewidth=0.9,
    )

    # Combined trading regime
    ax1.fill_between(
        x,
        0,
        1,
        where=signal == 1,
        transform=ax1.get_xaxis_transform(),
        color="green",
        alpha=0.08,
        step="post",
    )

    ax1.fill_between(
        x,
        0,
        1,
        where=signal == 0,
        transform=ax1.get_xaxis_transform(),
        color="red",
        alpha=0.04,
        step="post",
    )

    # UniEMA slope colors
    ema_colors = np.where(
        uniema >= np.r_[uniema[0], uniema[:-1]],
        "green",
        "red",
    )

    colored_line(
        ax1,
        x,
        uniema,
        ema_colors,
        width=2,
    )

    # Buy and sell markers
    signal_change = np.diff(
        signal,
        prepend=signal[0],
    )

    buy = signal_change == 1
    sell = signal_change == -1

    ax1.scatter(
        x[buy],
        close[buy],
        marker="^",
        color="green",
        edgecolor="black",
        linewidth=0.4,
        s=55,
        zorder=5,
    )

    ax1.scatter(
        x[sell],
        close[sell],
        marker="v",
        color="red",
        edgecolor="black",
        linewidth=0.4,
        s=55,
        zorder=5,
    )

    ax1.set_title(title)
    ax1.set_ylabel("Price")
    ax1.grid(alpha=0.25)

    ax1.legend(handles=[
        Line2D([], [], color="black", label="Close"),
        Line2D([], [], color="green", lw=2, label="UniEMA rising"),
        Line2D([], [], color="red", lw=2, label="UniEMA falling"),
        Line2D(
            [], [],
            marker="^",
            color="green",
            markeredgecolor="black",
            linestyle="",
            label="Buy",
        ),
        Line2D(
            [], [],
            marker="v",
            color="red",
            markeredgecolor="black",
            linestyle="",
            label="Sell",
        ),
    ])

    # --------------------------------------------------
    # RSI panel
    # --------------------------------------------------

    ax2.plot(
        x,
        rsi,
        color="gray",
        linewidth=1,
    )

    # UniRSI colors from Signal 2
    unirsi_colors = np.where(
        signal2 == 1,
        "green",
        np.where(signal2 == 0, "red", "gray"),
    )

    colored_line(
        ax2,
        x,
        unirsi,
        unirsi_colors,
        width=1.8,
    )

    ax2.axhline(70, color="red", linestyle="--", alpha=0.5)
    ax2.axhline(50, color="gray", linestyle=":", alpha=0.6)
    ax2.axhline(45, color="orange", linestyle=":", alpha=0.6)
    ax2.axhline(30, color="green", linestyle="--", alpha=0.5)

    ax2.set_ylim(0, 100)
    ax2.set_ylabel("RSI")
    #ax2.set_xlabel("Date")
    ax2.grid(alpha=0.25)

    ax2.legend(handles=[
        Line2D([], [], color="gray", label="RSI"),
        Line2D([], [], color="green", lw=2, label="UniRSI buy"),
        Line2D([], [], color="red", lw=2, label="UniRSI sell"),
    ])

    ax2.xaxis_date()
    ax2.xaxis.set_major_formatter(
        mdates.DateFormatter("%Y-%m")
    )

    fig.autofmt_xdate()
    fig.tight_layout()
    plt.show()

    return

plot_signals(df['2026-04':'2026-06'], title=f"{ticker} — UniEMA and UniRSI")
