Code: Select all

//@version=5
indicator("HoplaRanges", overlay = true, max_lines_count = 500, max_labels_count = 500)
//**************************************************************************************************************************************************************************************************
//Inputs
//**************************************************************************************************************************************************************************************************
string GeneralGroup                 = "GENERAL"
i_genNumberOfThreeRange             = input.int(        title = "Number of three range",    options = [3, 9, 27, 81, 243, 729, 2187],         defval = 27,              group = GeneralGroup)
i_genNumberOfRanges                 = input.int(        title = "Number of ranges to show", minval = 1,    maxval = 9,                        defval = 2,               group = GeneralGroup)
i_genMultiplyFactor                 = input.int(        title = "Multiply factor",                                                            defval = 1,               group = GeneralGroup)
i_genDynamicLabels                  = input.bool(       title = "Dynamic labels",                                                             defval = false,           group = GeneralGroup)
i_genEnable397                      = input.bool(       title = "Enable 3-97",                                                                defval = true,            group = GeneralGroup)
i_genEnable1189                     = input.bool(       title = "Enable 11-89",                                                               defval = true,            group = GeneralGroup)
i_genEnable1783                     = input.bool(       title = "Enable 17-83",                                                               defval = true,            group = GeneralGroup)
i_genEnable2971                     = input.bool(       title = "Enable 29-71",                                                               defval = true,            group = GeneralGroup)
i_genEnable4159                     = input.bool(       title = "Enable 41-59",                                                               defval = true,            group = GeneralGroup)
i_genEnable4753                     = input.bool(       title = "Enable 47-53",                                                               defval = true,            group = GeneralGroup)
i_genAccent397                      = input.bool(       title = "Accent 3-97",                                                                defval = false,           group = GeneralGroup)
i_genAccent1189                     = input.bool(       title = "Accent 11-89",                                                               defval = false,           group = GeneralGroup)
i_genAccent1783                     = input.bool(       title = "Accent 17-83",                                                               defval = false,           group = GeneralGroup)
i_genAccent2971                     = input.bool(       title = "Accent 29-71",                                                               defval = false,           group = GeneralGroup)
i_genAccent4159                     = input.bool(       title = "Accent 41-59",                                                               defval = false,           group = GeneralGroup)
i_genAccent4753                     = input.bool(       title = "Accent 47-53",                                                               defval = false,           group = GeneralGroup)
i_genColor                          = input.color(      title = "Color",                                                                      defval = color.black,   group = GeneralGroup)
i_genAccentColor                    = input.color(      title = "Accent color",                                                               defval = color.red,     group = GeneralGroup)
//**************************************************************************************************************************************************************************************************
//Libraries
//**************************************************************************************************************************************************************************************************
import paragjyoti2012/LoggerLib/5                   as Logger
import DewMic/FrameworkLib/44                       as Framework
import DewMic/HoplaRangesLib/12                     as Hopla
import DewMic/ConversionLib/14                      as Conversion
import DewMic/InformationLib/12                     as Information
//**************************************************************************************************************************************************************************************************
//Logger
//**************************************************************************************************************************************************************************************************
var logger                                          = Logger.init()
var logTable                                        = Logger.initTable(logger,max_rows_count=25,offset=0,position="right",size="small")
f_logMessage(_x)                                    => Logger.log(str.tostring(_x),logger,logTable,"message")
f_logWarning(_x)                                    => Logger.log(str.tostring(_x),logger,logTable,"warning")
f_logError(_x)                                      => Logger.log(str.tostring(_x),logger,logTable,"error")
f_logInfo(_x)                                       => Logger.log(str.tostring(_x),logger,logTable,"info")
f_logSucces(_x)                                     => Logger.log(str.tostring(_x),logger,logTable,"succes")
var     logLabel                                    = label.new(x=na,y=na,text="")
f_logLabel(_x)                                      =>
    label.set_x(        logLabel,   bar_index)
    label.set_y(        logLabel,   high)
    label.set_text(     logLabel,   str.tostring(_x))
    label.set_color(    logLabel,   color.red)
//**************************************************************************************************************************************************************************************************
//Information
//**************************************************************************************************************************************************************************************************
table       InfoTable               = table.new(columns=2, rows=15, border_width=2, frame_width=2, position=position.top_right)
string[]    Infos                   = array.new_string()
color[]     BackgroundColors        = array.new_color()
color[]     TextColors              = array.new_color()
//**************************************************************************************************************************************************************************************************
//Functions + data
//**************************************************************************************************************************************************************************************************
Hopla.draw_range(i_genMultiplyFactor, i_genNumberOfRanges, i_genNumberOfThreeRange, i_genEnable397, i_genEnable1189, i_genEnable1783, i_genEnable2971, i_genEnable4159, i_genEnable4753, i_genColor, i_genAccent397, i_genAccent1189, i_genAccent1783, i_genAccent2971, i_genAccent4159, i_genAccent4753, i_genAccentColor, i_genDynamicLabels)

Code: Select all

// This source code is subject to the terms of the Mozilla Public License 2.0 at https://mozilla.org/MPL/2.0/
// © tradeforopp

//@version=5

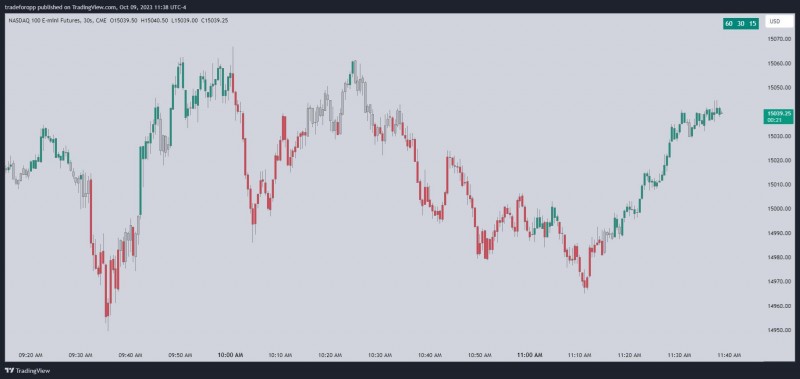

indicator("Timeframe Continuity [TFO]", "Timeframe Continuity [TFO]", true, max_lines_count = 500, max_labels_count = 500)

// -------------------------------------------------- Inputs --------------------------------------------------
var g1 = "Settings"
table_position = input.string('Top Right', "Table Position", options = ['Bottom Center', 'Bottom Left', 'Bottom Right', 'Middle Center', 'Middle Left', 'Middle Right', 'Top Center', 'Top Left', 'Top Right'], group = g1)
display = input.string('Horizontal', "Table Display", options = ['Horizontal', 'Vertical'], group = g1)
paint_ftfc = input.bool(true, "FTFC Candles", inline = "FTFC", tooltip = "Paint candles as FTFC Up/Down/Neutral", group = g1)
ftfc_up_color = input.color(color.rgb(0, 255, 0), "", inline = "FTFC", group = g1)
ftfc_dn_color = input.color(color.rgb(255, 0, 0), "", inline = "FTFC", group = g1)
ftfc_nu_color = input.color(color.gray, "", inline = "FTFC", group = g1)
ftfc_labels = input.bool(false, "Labels", inline = "LABEL", group = g1)
ftfc_label_type = input.string("Flip", "", inline = "LABEL", options = ['Flip', 'Any'], tooltip = "Flip will only plot labels for the first FTFC Up/Down instance. Any will plot labels for any new indication of FTFC", group = g1)
show_mbhl = input.bool(false, "Show Mother Bar High & Low", tooltip = "If a given timeframe is currently trading as an inside bar, it will plot the previous high and low that must be exceeded to no longer be an inside bar", group = g1)

var g3 = "Table Colors"
text_color = input.color(color.white, "Text", group = g3)
up_close_color = input.color(color.new(color.teal, 0), "Up-Close", group = g3)
dn_close_color = input.color(color.new(color.red, 0), "Down-Close", group = g3)
inside_up_color = input.color(color.new(color.blue, 0), "Inside-Up-Close", group = g3)
inside_dn_color = input.color(color.new(color.purple, 0), "Inside-Down-Close", group = g3)

var g2 = "Timeframes"
tf1 = input.timeframe("D", "TF 1", inline = "1", group = g2)
tf2 = input.timeframe("60", "TF 2", inline = "2", group = g2)
tf3 = input.timeframe("30", "TF 3", inline = "3", group = g2)
tf4 = input.timeframe("15", "TF 4", inline = "4", group = g2)
tf5 = input.timeframe("5", "TF 5", inline = "5", group = g2)
tf6 = input.timeframe("D", "TF 6", inline = "6", group = g2)
tf7 = input.timeframe("60", "TF 7", inline = "7", group = g2)
tf8 = input.timeframe("30", "TF 8", inline = "8", group = g2)
tf9 = input.timeframe("15", "TF 9", inline = "9", group = g2)
tf10 = input.timeframe("5", "TF 10", inline = "10", group = g2)

y1 = input.bool(true, "", inline = "1", group = g2)
y2 = input.bool(true, "", inline = "2", group = g2)
y3 = input.bool(true, "", inline = "3", group = g2)
y4 = input.bool(true, "", inline = "4", group = g2)
y5 = input.bool(true, "", inline = "5", group = g2)
y6 = input.bool(false, "", inline = "6", group = g2)
y7 = input.bool(false, "", inline = "7", group = g2)
y8 = input.bool(false, "", inline = "8", group = g2)
y9 = input.bool(false, "", inline = "9", group = g2)
y10 = input.bool(false, "", inline = "10", group = g2)
// -------------------------------------------------- Inputs --------------------------------------------------


// -------------------------------------------------- Variables --------------------------------------------------
[o1, h1, l1] = request.security(syminfo.tickerid, tf1, [open, high, low], barmerge.gaps_off, barmerge.lookahead_on)
[o2, h2, l2] = request.security(syminfo.tickerid, tf2, [open, high, low], barmerge.gaps_off, barmerge.lookahead_on)
[o3, h3, l3] = request.security(syminfo.tickerid, tf3, [open, high, low], barmerge.gaps_off, barmerge.lookahead_on)
[o4, h4, l4] = request.security(syminfo.tickerid, tf4, [open, high, low], barmerge.gaps_off, barmerge.lookahead_on)
[o5, h5, l5] = request.security(syminfo.tickerid, tf5, [open, high, low], barmerge.gaps_off, barmerge.lookahead_on)
[o6, h6, l6] = request.security(syminfo.tickerid, tf6, [open, high, low], barmerge.gaps_off, barmerge.lookahead_on)
[o7, h7, l7] = request.security(syminfo.tickerid, tf7, [open, high, low], barmerge.gaps_off, barmerge.lookahead_on)
[o8, h8, l8] = request.security(syminfo.tickerid, tf8, [open, high, low], barmerge.gaps_off, barmerge.lookahead_on)
[o9, h9, l9] = request.security(syminfo.tickerid, tf9, [open, high, low], barmerge.gaps_off, barmerge.lookahead_on)
[o10, h10, l10] = request.security(syminfo.tickerid, tf10, [open, high, low], barmerge.gaps_off, barmerge.lookahead_on)

var tf1_h = array.new_float()
var tf2_h = array.new_float()
var tf3_h = array.new_float()
var tf4_h = array.new_float()
var tf5_h = array.new_float()
var tf6_h = array.new_float()
var tf7_h = array.new_float()
var tf8_h = array.new_float()
var tf9_h = array.new_float()
var tf10_h = array.new_float()

var tf1_l = array.new_float()
var tf2_l = array.new_float()
var tf3_l = array.new_float()
var tf4_l = array.new_float()
var tf5_l = array.new_float()
var tf6_l = array.new_float()
var tf7_l = array.new_float()
var tf8_l = array.new_float()
var tf9_l = array.new_float()
var tf10_l = array.new_float()

var mbh_1 = line.new(na, na, na, na, color = color.new(up_close_color, 0), extend = extend.right)
var mbh_2 = line.new(na, na, na, na, color = color.new(up_close_color, 0), extend = extend.right)
var mbh_3 = line.new(na, na, na, na, color = color.new(up_close_color, 0), extend = extend.right)
var mbh_4 = line.new(na, na, na, na, color = color.new(up_close_color, 0), extend = extend.right)
var mbh_5 = line.new(na, na, na, na, color = color.new(up_close_color, 0), extend = extend.right)
var mbh_6 = line.new(na, na, na, na, color = color.new(up_close_color, 0), extend = extend.right)
var mbh_7 = line.new(na, na, na, na, color = color.new(up_close_color, 0), extend = extend.right)
var mbh_8 = line.new(na, na, na, na, color = color.new(up_close_color, 0), extend = extend.right)
var mbh_9 = line.new(na, na, na, na, color = color.new(up_close_color, 0), extend = extend.right)
var mbh_10 = line.new(na, na, na, na, color = color.new(up_close_color, 0), extend = extend.right)

var mbl_1 = line.new(na, na, na, na, color = color.new(dn_close_color, 0), extend = extend.right)
var mbl_2 = line.new(na, na, na, na, color = color.new(dn_close_color, 0), extend = extend.right)
var mbl_3 = line.new(na, na, na, na, color = color.new(dn_close_color, 0), extend = extend.right)
var mbl_4 = line.new(na, na, na, na, color = color.new(dn_close_color, 0), extend = extend.right)
var mbl_5 = line.new(na, na, na, na, color = color.new(dn_close_color, 0), extend = extend.right)
var mbl_6 = line.new(na, na, na, na, color = color.new(dn_close_color, 0), extend = extend.right)
var mbl_7 = line.new(na, na, na, na, color = color.new(dn_close_color, 0), extend = extend.right)
var mbl_8 = line.new(na, na, na, na, color = color.new(dn_close_color, 0), extend = extend.right)
var mbl_9 = line.new(na, na, na, na, color = color.new(dn_close_color, 0), extend = extend.right)
var mbl_10 = line.new(na, na, na, na, color = color.new(dn_close_color, 0), extend = extend.right)

var mbh_label_1 = label.new(na, na, str.tostring(tf1) + " H", color = color.new(up_close_color, 0), textcolor = color.white, style = label.style_label_down)
var mbh_label_2 = label.new(na, na, str.tostring(tf2) + " H", color = color.new(up_close_color, 0), textcolor = color.white, style = label.style_label_down)
var mbh_label_3 = label.new(na, na, str.tostring(tf3) + " H", color = color.new(up_close_color, 0), textcolor = color.white, style = label.style_label_down)
var mbh_label_4 = label.new(na, na, str.tostring(tf4) + " H", color = color.new(up_close_color, 0), textcolor = color.white, style = label.style_label_down)
var mbh_label_5 = label.new(na, na, str.tostring(tf5) + " H", color = color.new(up_close_color, 0), textcolor = color.white, style = label.style_label_down)
var mbh_label_6 = label.new(na, na, str.tostring(tf6) + " H", color = color.new(up_close_color, 0), textcolor = color.white, style = label.style_label_down)
var mbh_label_7 = label.new(na, na, str.tostring(tf7) + " H", color = color.new(up_close_color, 0), textcolor = color.white, style = label.style_label_down)
var mbh_label_8 = label.new(na, na, str.tostring(tf8) + " H", color = color.new(up_close_color, 0), textcolor = color.white, style = label.style_label_down)
var mbh_label_9 = label.new(na, na, str.tostring(tf9) + " H", color = color.new(up_close_color, 0), textcolor = color.white, style = label.style_label_down)
var mbh_label_10 = label.new(na, na, str.tostring(tf10) + " H", color = color.new(up_close_color, 0), textcolor = color.white, style = label.style_label_down)

var mbl_label_1 = label.new(na, na, str.tostring(tf1) + " L", color = color.new(dn_close_color, 0), textcolor = color.white, style = label.style_label_up)
var mbl_label_2 = label.new(na, na, str.tostring(tf2) + " L", color = color.new(dn_close_color, 0), textcolor = color.white, style = label.style_label_up)
var mbl_label_3 = label.new(na, na, str.tostring(tf3) + " L", color = color.new(dn_close_color, 0), textcolor = color.white, style = label.style_label_up)
var mbl_label_4 = label.new(na, na, str.tostring(tf4) + " L", color = color.new(dn_close_color, 0), textcolor = color.white, style = label.style_label_up)
var mbl_label_5 = label.new(na, na, str.tostring(tf5) + " L", color = color.new(dn_close_color, 0), textcolor = color.white, style = label.style_label_up)
var mbl_label_6 = label.new(na, na, str.tostring(tf6) + " L", color = color.new(dn_close_color, 0), textcolor = color.white, style = label.style_label_up)
var mbl_label_7 = label.new(na, na, str.tostring(tf7) + " L", color = color.new(dn_close_color, 0), textcolor = color.white, style = label.style_label_up)
var mbl_label_8 = label.new(na, na, str.tostring(tf8) + " L", color = color.new(dn_close_color, 0), textcolor = color.white, style = label.style_label_up)
var mbl_label_9 = label.new(na, na, str.tostring(tf9) + " L", color = color.new(dn_close_color, 0), textcolor = color.white, style = label.style_label_up)
var mbl_label_10 = label.new(na, na, str.tostring(tf10) + " L", color = color.new(dn_close_color, 0), textcolor = color.white, style = label.style_label_up)
// -------------------------------------------------- Variables --------------------------------------------------


// -------------------------------------------------- Functions --------------------------------------------------
get_table_pos(pos) =>
    result = switch pos
        "Bottom Center" => position.bottom_center
        "Bottom Left" => position.bottom_left
        "Bottom Right" => position.bottom_right
        "Middle Center" => position.middle_center
        "Middle Left" => position.middle_left
        "Middle Right" => position.middle_right
        "Top Center" => position.top_center
        "Top Left" => position.top_left
        "Top Right" => position.top_right
    result

update_hl(_ah, _al, _tf, _h, _l) =>
    if timeframe.change(_tf)
        _ah.unshift(_h[1])
        _al.unshift(_l[1])
    if _ah.size() > 3
        _ah.pop()
        _al.pop()

check_tfc(_tfc, _ah, _al, _h, _l) =>
    color table_color = na
    if _ah.size() > 0
        if _h <= _ah.get(0) and _l >= _al.get(0)
            if _tfc
                table_color := inside_up_color
            else
                table_color := inside_dn_color
        else
            if _tfc
                table_color := up_close_color
            else
                table_color := dn_close_color
        table_color

draw_lines(_h, _l, _ah, _al, _mbh, _mbl, _mbhl, _mbll, _idx, _u) =>
    i = _idx - 1
    if _ah.size() > 0 and _u.get(i)
        if _h <= _ah.get(0) and _l >= _al.get(0)
            _mbh.set_xy1(bar_index, _ah.get(0))
            _mbh.set_xy2(bar_index + 1, _ah.get(0))
            _mbhl.set_xy(bar_index, _ah.get(0))

            _mbl.set_xy1(bar_index, _al.get(0))
            _mbl.set_xy2(bar_index + 1, _al.get(0))
            _mbll.set_xy(bar_index, _al.get(0))
        else
            _mbh.set_xy1(na, na)
            _mbh.set_xy2(na, na)
            _mbhl.set_xy(na, na)

            _mbl.set_xy1(na, na)
            _mbl.set_xy2(na, na)
            _mbll.set_xy(na, na)
// -------------------------------------------------- Functions --------------------------------------------------


// -------------------------------------------------- Logic --------------------------------------------------
update_hl(tf1_h, tf1_l, tf1, h1, l1)
update_hl(tf2_h, tf2_l, tf2, h2, l2)
update_hl(tf3_h, tf3_l, tf3, h3, l3)
update_hl(tf4_h, tf4_l, tf4, h4, l4)
update_hl(tf5_h, tf5_l, tf5, h5, l5)
update_hl(tf6_h, tf6_l, tf6, h6, l6)
update_hl(tf7_h, tf7_l, tf7, h7, l7)
update_hl(tf8_h, tf8_l, tf8, h8, l8)
update_hl(tf9_h, tf9_l, tf9, h9, l9)
update_hl(tf10_h, tf10_l, tf10, h10, l10)

// Check if up-close
tfc1 = close > o1
tfc2 = close > o2
tfc3 = close > o3
tfc4 = close > o4
tfc5 = close > o5
tfc6 = close > o6
tfc7 = close > o7
tfc8 = close > o8
tfc9 = close > o9
tfc10 = close > o10

use_arr = array.from(y1, y2, y3, y4, y5, y6, y7, y8, y9, y10)
tfc_arr = array.from(tfc1, tfc2, tfc3, tfc4, tfc5, tfc6, tfc7, tfc8, tfc9, tfc10)

// Determine FTFC
ftfc_up = true
ftfc_dn = true

var bool ftfc_up_last = na

for i = 0 to tfc_arr.size() - 1
    if use_arr.get(i)
        if tfc_arr.get(i)
            ftfc_dn := false
        else
            ftfc_up := false

if ftfc_up and not ftfc_up[1]
    ftfc_up_last := true
    if ftfc_labels
        if ftfc_label_type == 'Flip' ? (ftfc_up_last and not ftfc_up_last[1]) : true
            label.new(bar_index, low, "FTFC Up", color = color.new(up_close_color, 0), textcolor = color.white, style = label.style_label_up)
if ftfc_dn and not ftfc_dn[1]
    ftfc_up_last := false
    if ftfc_labels
        if ftfc_label_type == 'Flip' ? (not ftfc_up_last and ftfc_up_last[1]) : true
            label.new(bar_index, high, "FTFC Down", color = color.new(dn_close_color, 0), textcolor = color.white, style = label.style_label_down)

// Change bar color according to FTFC
barcolor(not paint_ftfc ? na : ftfc_up ? ftfc_up_color : ftfc_dn ? ftfc_dn_color : ftfc_nu_color)

if show_mbhl
    draw_lines(h1, l1, tf1_h, tf1_l, mbh_1, mbl_1, mbh_label_1, mbl_label_1, 1, use_arr)
    draw_lines(h2, l2, tf2_h, tf2_l, mbh_2, mbl_2, mbh_label_2, mbl_label_2, 2, use_arr)
    draw_lines(h3, l3, tf3_h, tf3_l, mbh_3, mbl_3, mbh_label_3, mbl_label_3, 3, use_arr)
    draw_lines(h4, l4, tf4_h, tf4_l, mbh_4, mbl_4, mbh_label_4, mbl_label_4, 4, use_arr)
    draw_lines(h5, l5, tf5_h, tf5_l, mbh_5, mbl_5, mbh_label_5, mbl_label_5, 5, use_arr)
    draw_lines(h6, l6, tf6_h, tf6_l, mbh_6, mbl_6, mbh_label_6, mbl_label_6, 6, use_arr)
    draw_lines(h7, l7, tf7_h, tf7_l, mbh_7, mbl_7, mbh_label_7, mbl_label_7, 7, use_arr)
    draw_lines(h8, l8, tf8_h, tf8_l, mbh_8, mbl_8, mbh_label_8, mbl_label_8, 8, use_arr)
    draw_lines(h9, l9, tf9_h, tf9_l, mbh_9, mbl_9, mbh_label_9, mbl_label_9, 9, use_arr)
    draw_lines(h10, l10, tf10_h, tf10_l, mbh_10, mbl_10, mbh_label_10, mbl_label_10, 10, use_arr)
// -------------------------------------------------- Logic --------------------------------------------------


// -------------------------------------------------- Table --------------------------------------------------
// Create TFC table
var table tfc = table.new(get_table_pos(table_position), 10, 10)
horizontal = display == 'Horizontal'

if barstate.islast
    if y1
        table.cell(tfc, horizontal ? 0 : 0, horizontal ? 0 : 0, str.tostring(tf1), text_color = text_color, bgcolor = check_tfc(tfc1, tf1_h, tf1_l, h1, l1))
    if y2
        table.cell(tfc, horizontal ? 1 : 0, horizontal ? 0 : 1, str.tostring(tf2), text_color = text_color, bgcolor = check_tfc(tfc2, tf2_h, tf2_l, h2, l2))
    if y3
        table.cell(tfc, horizontal ? 2 : 0, horizontal ? 0 : 2, str.tostring(tf3), text_color = text_color, bgcolor = check_tfc(tfc3, tf3_h, tf3_l, h3, l3))
    if y4
        table.cell(tfc, horizontal ? 3 : 0, horizontal ? 0 : 3, str.tostring(tf4), text_color = text_color, bgcolor = check_tfc(tfc4, tf4_h, tf4_l, h4, l4))
    if y5
        table.cell(tfc, horizontal ? 4 : 0, horizontal ? 0 : 4, str.tostring(tf5), text_color = text_color, bgcolor = check_tfc(tfc5, tf5_h, tf5_l, h5, l5))
    if y6
        table.cell(tfc, horizontal ? 5 : 0, horizontal ? 0 : 5, str.tostring(tf6), text_color = text_color, bgcolor = check_tfc(tfc6, tf6_h, tf6_l, h6, l6))
    if y7
        table.cell(tfc, horizontal ? 6 : 0, horizontal ? 0 : 6, str.tostring(tf7), text_color = text_color, bgcolor = check_tfc(tfc7, tf7_h, tf7_l, h7, l7))
    if y8
        table.cell(tfc, horizontal ? 7 : 0, horizontal ? 0 : 7, str.tostring(tf8), text_color = text_color, bgcolor = check_tfc(tfc8, tf8_h, tf8_l, h8, l8))
    if y9
        table.cell(tfc, horizontal ? 8 : 0, horizontal ? 0 : 8, str.tostring(tf9), text_color = text_color, bgcolor = check_tfc(tfc9, tf9_h, tf9_l, h9, l9))
    if y10
        table.cell(tfc, horizontal ? 9 : 0, horizontal ? 0 : 9, str.tostring(tf10), text_color = text_color, bgcolor = check_tfc(tfc10, tf10_h, tf10_l, h10, l10))
// -------------------------------------------------- Table --------------------------------------------------
