Something interesting from Chatgpt/AI please post here

Pelle wrote: Thu Jun 11, 2026 12:22 am Try that version. After this I will not update this indicator again. This version was made with Gemini 3.5 flash.

### Change Log: Quant Master Liquidity Events (MQL5)

| Version | Date | Description of Changes |
| :--- | :--- | :--- |
| **1.01** | 2026-06-10 | **Statistical Accuracy:** Replaced population variance with sample variance ($N-1$) for Z-score calculations to ensure exact consistency with the TradingView Pine Script logic. |
| | | **Volume Engine:** Integrated automatic detection for real volume vs. tick volume. Optimized lower-timeframe processing by restricting the lookback history to 1000 bars, significantly improving performance and indicator stability. |
| | | **Visual Integrity:** Implemented dynamic tick-by-tick repositioning for bubbles and labels. Corrected bubble visibility logic so it properly respects the "Total Volume" input selection. |
| | | **Ghost Lines:** Built a FIFO (First-In, First-Out) queue mechanism that limits active ghost lines to a maximum of 10. This prevents memory leaks and keeps the chart clean. Ghost lines are now also properly restricted to only "Large" events. |
| | | **Dashboard:** Added dynamic resizing for legend and table cells (Small/Normal/Large/Huge). Implemented a full object cleanup routine when the dashboard is toggled off to ensure no residual UI debris is left on the chart. |
| | | **Live Stability:** Fixed a "sticky paint" bug by resetting signal event buffers at the start of each bar calculation, ensuring correct live updates. |

Pelle wrote: Thu Jun 11, 2026 12:22 am Try that version. After this I will not update this indicator again. This version was made with Gemini 3.5 flash.

### Change Log: Quant Master Liquidity Events (MQL5)

| Version | Date | Description of Changes |
| :--- | :--- | :--- |
| **1.01** | 2026-06-10 | **Statistical Accuracy:** Replaced population variance with sample variance ($N-1$) for Z-score calculations to ensure exact consistency with the TradingView Pine Script logic. |
| | | **Volume Engine:** Integrated automatic detection for real volume vs. tick volume. Optimized lower-timeframe processing by restricting the lookback history to 1000 bars, significantly improving performance and indicator stability. |
| | | **Visual Integrity:** Implemented dynamic tick-by-tick repositioning for bubbles and labels. Corrected bubble visibility logic so it properly respects the "Total Volume" input selection. |
| | | **Ghost Lines:** Built a FIFO (First-In, First-Out) queue mechanism that limits active ghost lines to a maximum of 10. This prevents memory leaks and keeps the chart clean. Ghost lines are now also properly restricted to only "Large" events. |
| | | **Dashboard:** Added dynamic resizing for legend and table cells (Small/Normal/Large/Huge). Implemented a full object cleanup routine when the dashboard is toggled off to ensure no residual UI debris is left on the chart. |
| | | **Live Stability:** Fixed a "sticky paint" bug by resetting signal event buffers at the start of each bar calculation, ensuring correct live updates. |

xiannan wrote: Thu Jun 11, 2026 8:40 pm Can you optimize the ghost line here? If only big events show dotted lines, there are too few trading opportunities. Here, I think we can add a setting in the indicator parameters, and we can customize to turn on or off medium and small events. Can you make this indicator again? Optimize it and share both mt5 and mt4 versions. Thank you very much to our design master Pelle.

Pelle wrote: Fri Jun 12, 2026 2:56 am Tired of the queries related to that indicator. If it doesn't work for you, ask the AI ​​and I will too.

It has worked correctly for me from the beginning, although I don't use it myself.

Anyway, LAST update, I hope it works for you too.

Will go to my own Tokens in the old indicator.
The ZIP file contains both MT4 and MT5 source codes.

Pelle wrote: Fri Jun 12, 2026 2:56 am Tired of the queries related to that indicator. If it doesn't work for you, ask the AI ​​and I will too.

It has worked correctly for me from the beginning, although I don't use it myself.

Anyway, LAST update, I hope it works for you too.

Will go to my own Tokens in the old indicator.
The ZIP file contains both MT4 and MT5 source codes.

Pelle wrote: Fri Jun 12, 2026 8:45 pm 1. Open an AI account, I have Google's Antigravity

2. Right click on the QuantMasterLiquidityEvents.mq5 indicator in the Indicator folder and select Copy as path

3. go to the Ai prompt section and ask the AI ​​whether (paste the path you just copied here) The code is similar to the pinescript below both functionally and visually.

4. Copy and paste the pinescript source code you found there
https://www.tradingview.com/script/dnbS ... me-Bubble/

5. Press enter

That will get you started and thus develop the indicator in the direction you want

Code: Select all

//@version=6
indicator("Quant Master Liquidity Events [Gold + Dashboard]", overlay=true, max_labels_count=500, max_lines_count=100)

// ==========================================
// 🔹 QUANT SETTINGS
// ==========================================
group_data = "Data Feeds"
src_vol    = input.string("Volume Delta", "Volume Source", options=["Volume Delta", "Total Volume"], tooltip="Select 'Volume Delta' to analyze Buy vs Sell pressure (Aggressor data).\nSelect 'Total Volume' for classic liquidity spike detection.", group=group_data)
tf_lower   = input.timeframe("1", "Intrabar Precision", tooltip="The lower timeframe used to calculate Volume Delta inside the current bar.\nLower (e.g., 1min) = Higher Precision but slower loading.", group=group_data)
len_stat   = input.int(60, "Statistical Lookback", minval=20, tooltip="The rolling window used to calculate the Mean and Standard Deviation (Sigma).", group=group_data)

group_filter = "Institutional Filters"
z_vol_thresh = input.float(2.0, "Min Volume Z-Score (σ)", step=0.1, tooltip="The 'Rarity Threshold'.\nA value of 2.0 means the volume must be 2 Standard Deviations higher than the average to trigger a bubble (top 5% of events).", group=group_filter)
z_px_thresh  = input.float(2.0, "Min Price Z-Score (σ)", step=0.1, tooltip="Ensures the price move is also statistically significant, filtering out high-volume 'doji' chop.", group=group_filter)
use_div      = input.bool(true, "Highlight CVD Divergences", tooltip="Enables the Blue/Orange bubbles.\nDetects when Price and Volume Delta move in opposite directions (Absorption/Iceberg orders).", group=group_filter)

group_vis    = "Visuals"
show_bull    = input.bool(true, "Show Bullish Events", group=group_vis)
show_bear    = input.bool(true, "Show Bearish Events", group=group_vis)
scale_size   = input.bool(true, "Dynamic Bubble Size", tooltip="If enabled, bubbles grow larger based on their Z-Score.\nSmall = 2σ event.\nLarge = >3σ (Rare event).", group=group_vis)
show_ghosts  = input.bool(true, "Show Liquidity Memory (Ghost Lines)", group=group_vis, tooltip="Draws extended dotted lines from MAJOR institutional events.\nThese levels often act as future 'Defended' Support/Resistance.")

group_dash   = "Dashboard"
show_dash    = input.bool(true, "Show Info Dashboard", group=group_dash)
dash_pos     = input.string(position.top_right, "Position", options=[position.top_right, position.bottom_right, position.bottom_left, position.top_left], group=group_dash)
dash_size    = input.string(size.normal, "Size", options=[size.small, size.normal, size.large, size.huge], group=group_dash)

// ==========================================
// 🔹 ENGINE 1: HYBRID DATA AGGREGATION
// ==========================================
[vol_delta, vol_total] = request.security_lower_tf(syminfo.tickerid, tf_lower, [volume * (close >= open ? 1 : -1), volume], ignore_invalid_symbol = true)

float bar_delta = 0.0
float bar_vol   = 0.0

// Data Quality Check
if array.size(vol_delta) > 0
    bar_delta := array.sum(vol_delta)
    bar_vol   := array.sum(vol_total)
else
    float mfm = (high - low) != 0 ? ((close - low) - (high - close)) / (high - low) : 0
    bar_delta := volume * mfm
    bar_vol   := volume

float metric_raw = src_vol == "Volume Delta" ? bar_delta : bar_vol
float metric_abs = math.abs(metric_raw)

// ==========================================
// 🔹 ENGINE 2: THE Z-SCORE MATRIX
// ==========================================
vol_mean   = ta.sma(metric_abs, len_stat)
vol_std    = ta.stdev(metric_abs, len_stat)
vol_z      = vol_std != 0 ? (metric_abs - vol_mean) / vol_std : 0.0

px_mean    = ta.sma(close, len_stat)
px_std     = ta.stdev(close, len_stat)
px_z       = px_std != 0 ? (close - px_mean) / px_std : 0.0

// ==========================================
// 🔹 ENGINE 3: LOGIC GATES
// ==========================================
is_vol_event = vol_z >= z_vol_thresh
is_px_event  = math.abs(px_z) >= z_px_thresh

bool is_bull_div = (close < open) and (bar_delta > 0)
bool is_bear_div = (close > open) and (bar_delta < 0)

bool valid_trigger = is_vol_event and (is_px_event or (use_div and (is_bull_div or is_bear_div)))

// ==========================================
// 🔹 VISUALIZATION & GHOST LINES
// ==========================================
color col_bull      = color.new(#00E676, 20)
color col_bear      = color.new(#FF1744, 20)
color col_absorb_bu = color.new(#2962FF, 10)
color col_absorb_be = color.new(#FF6D00, 10)

// Storage for Dashboard (Last 5 Events)
// Structure: [Time, Type (0=Bull, 1=Bear, 2=AbsorbBuy, 3=AbsorbSell), Z-Score]
var float[] log_times = array.new_float()
var int[]   log_types = array.new_int()
var float[] log_z     = array.new_float()

// Array to manage Ghost Lines
var line[] active_lines = array.new_line()

if valid_trigger
    bool is_up = metric_raw > 0
    color bubble_col = na
    string tooltip_txt = ""
    int event_type = 0

    // 1. Determine Color & Type
    if is_bull_div
        bubble_col := col_absorb_bu
        tooltip_txt := "🛑 ABSORPTION BUY (Iceberg)\nPrice Down / Delta Up\nBias: Reversal Long"
        event_type := 2
    else if is_bear_div
        bubble_col := col_absorb_be
        tooltip_txt := "🛑 ABSORPTION SELL (Iceberg)\nPrice Up / Delta Down\nBias: Reversal Short"
        event_type := 3
    else
        bubble_col := is_up ? col_bull : col_bear
        tooltip_txt := is_up ? "🚀 MOMENTUM BUY (Aggression)" : "🔻 MOMENTUM SELL (Aggression)"
        event_type := is_up ? 0 : 1

    // 2. Build Tooltip
    tooltip_txt := tooltip_txt + "\n\n📊 Vol Z: " + str.tostring(vol_z, "#.##") + "σ"
    tooltip_txt := tooltip_txt + "\n💧 Delta: " + str.tostring(bar_delta, format.volume)
    string quality_tag = array.size(vol_delta) > 0 ? " (High Res)" : " (Est)"
    tooltip_txt := tooltip_txt + "\nData Quality:" + quality_tag

    // 3. Determine Size
    string size_bubble = size.tiny
    if scale_size
        if vol_z > z_vol_thresh + 2.0
            size_bubble := size.normal
        else if vol_z > z_vol_thresh + 1.0
            size_bubble := size.small

    float anchor_price = (high + low + close) / 3

    // 4. Plot Bubble
    if (metric_raw > 0 and show_bull) or (metric_raw < 0 and show_bear)
        label.new(bar_index, anchor_price,
                  text=str.tostring(metric_raw, format.volume),
                  style=label.style_circle,
                  color=bubble_col,
                  textcolor=color.white,
                  size=size_bubble,
                  tooltip=tooltip_txt)

        // Store Event for Dashboard
        array.unshift(log_times, time)
        array.unshift(log_types, event_type)
        array.unshift(log_z, vol_z)
        // Keep only last 10 in memory to save resources
        if array.size(log_times) > 10
            array.pop(log_times)
            array.pop(log_types)
            array.pop(log_z)

        // 5. DRAW GHOST LINES
        bool is_significant = (size_bubble == size.normal) or (size_bubble == size.large)
        if show_ghosts and is_significant
            float defense_level = is_up ? low : high
            color line_col      = color.new(bubble_col, 50)
            line new_line = line.new(bar_index, defense_level, bar_index + 50, defense_level,
                                     color=line_col, style=line.style_dotted, width=1)
            array.push(active_lines, new_line)
            if array.size(active_lines) > 10
                line.delete(array.shift(active_lines))

// ==========================================
// 🔹 DASHBOARD RENDER
// ==========================================
if show_dash and barstate.islast
    // Increased row count to 16 to accommodate new legend
    tbl = table.new(dash_pos, 2, 16, bgcolor=color.new(color.black, 50), frame_color=color.gray, frame_width=1, border_width=1)

    // --- HEADER ---
    table.merge_cells(tbl, 0, 0, 1, 0)
    table.cell(tbl, 0, 0, "QUANT LOGIC MATRIX", text_color=color.white, bgcolor=color.new(#00E5FF, 80), text_size=dash_size)

    // --- COLOR LEGEND ---
    table.cell(tbl, 0, 1, "🟢 MOMENTUM BUY", text_color=color.white, bgcolor=col_bull, text_size=dash_size, text_halign=text.align_left)
    table.cell(tbl, 1, 1, "Aggressive market buys pushing price UP.", text_color=color.white, text_size=dash_size, text_halign=text.align_left)

    table.cell(tbl, 0, 2, "🔴 MOMENTUM SELL", text_color=color.white, bgcolor=col_bear, text_size=dash_size, text_halign=text.align_left)
    table.cell(tbl, 1, 2, "Aggressive market sells pushing price DOWN.", text_color=color.white, text_size=dash_size, text_halign=text.align_left)

    table.cell(tbl, 0, 3, "🔵 ABSORPTION BUY", text_color=color.white, bgcolor=col_absorb_bu, text_size=dash_size, text_halign=text.align_left)
    table.cell(tbl, 1, 3, "Price dropping but buying detected (Reversal).", text_color=color.white, text_size=dash_size, text_halign=text.align_left)

    table.cell(tbl, 0, 4, "🟠 ABSORPTION SELL", text_color=color.white, bgcolor=col_absorb_be, text_size=dash_size, text_halign=text.align_left)
    table.cell(tbl, 1, 4, "Price rising but selling detected (Reversal).", text_color=color.white, text_size=dash_size, text_halign=text.align_left)

    // --- SIZE LEGEND (NEW) ---
    table.merge_cells(tbl, 0, 5, 1, 5)
    table.cell(tbl, 0, 5, "SIZE & INTENSITY (Z-SCORE)", text_color=color.white, bgcolor=color.new(color.gray, 50), text_size=dash_size)

    // Small
    table.cell(tbl, 0, 6, "• Standard", text_color=color.white, text_size=dash_size, text_halign=text.align_center)
    table.cell(tbl, 1, 6, "2.0σ - 3.0σ (Small Event)", text_color=color.gray, text_size=dash_size, text_halign=text.align_left)

    // Medium
    table.cell(tbl, 0, 7, "● Notice", text_color=color.white, text_size=dash_size, text_halign=text.align_center)
    table.cell(tbl, 1, 7, "3.0σ - 4.0σ (Take Notice)", text_color=color.new(#00E5FF, 20), text_size=dash_size, text_halign=text.align_left)

    // Large
    table.cell(tbl, 0, 8, "⬤ LARGE", text_color=color.white, text_size=dash_size, text_halign=text.align_center)
    table.cell(tbl, 1, 8, "> 4.0σ (Black Swan / Rare)", text_color=color.new(#FF00CC, 20), text_size=dash_size, text_halign=text.align_left)

    // --- LOGS ---
    table.merge_cells(tbl, 0, 9, 1, 9)
    table.cell(tbl, 0, 9, "LAST 5 SIGNALS (24H)", text_color=color.yellow, bgcolor=color.new(color.black, 20), text_size=dash_size)

    // Log Logic
    int rows_printed = 0
    int size_log = array.size(log_times)

    if size_log > 0
        for i = 0 to size_log - 1
            if rows_printed >= 5
                break

            t_event = array.get(log_times, i)

            if (timenow - t_event) < 86400000
                type_e = array.get(log_types, i)
                z_score = array.get(log_z, i)

                string type_str = ""
                color type_col = color.gray

                if type_e == 0
                    type_str := "MOMENTUM BUY"
                    type_col := col_bull
                else if type_e == 1
                    type_str := "MOMENTUM SELL"
                    type_col := col_bear
                else if type_e == 2
                    type_str := "ABSORPTION BUY"
                    type_col := col_absorb_bu
                else if type_e == 3
                    type_str := "ABSORPTION SELL"
                    type_col := col_absorb_be

                string t_str = str.format("{0,date,short} {0,time,short}", t_event)
                string val_str = type_str + " (" + str.tostring(z_score, "#.1") + "σ)"

                table.cell(tbl, 0, 10 + rows_printed, t_str, text_color=color.white, text_size=size.small, bgcolor=color.new(color.black, 60))
                table.cell(tbl, 1, 10 + rows_printed, val_str, text_color=color.white, bgcolor=type_col, text_size=size.small)

                rows_printed := rows_printed + 1
    else
        table.merge_cells(tbl, 0, 10, 1, 10)
        table.cell(tbl, 0, 10, "No recent whale activity...", text_color=color.gray, text_size=dash_size)

alertcondition(valid_trigger, "Quant Liquidity Event", "Institutional Volume Spike Detected")

Pelle wrote: Fri Jun 12, 2026 8:45 pm 1. Open an AI account, I have Google's Antigravity

2. Right click on the QuantMasterLiquidityEvents.mq5 indicator in the Indicator folder and select Copy as path

3. go to the Ai prompt section and ask the AI ​​whether (paste the path you just copied here) The code is similar to the pinescript below both functionally and visually.

4. Copy and paste the pinescript source code you found there
https://www.tradingview.com/script/dnbS ... me-Bubble/

5. Press enter

That will get you started and thus develop the indicator in the direction you want

Code: Select all

//@version=6
indicator("Quant Master Liquidity Events [Gold + Dashboard]", overlay=true, max_labels_count=500, max_lines_count=100)

// ==========================================
// 🔹 QUANT SETTINGS
// ==========================================
group_data = "Data Feeds"
src_vol    = input.string("Volume Delta", "Volume Source", options=["Volume Delta", "Total Volume"], tooltip="Select 'Volume Delta' to analyze Buy vs Sell pressure (Aggressor data).\nSelect 'Total Volume' for classic liquidity spike detection.", group=group_data)
tf_lower   = input.timeframe("1", "Intrabar Precision", tooltip="The lower timeframe used to calculate Volume Delta inside the current bar.\nLower (e.g., 1min) = Higher Precision but slower loading.", group=group_data)
len_stat   = input.int(60, "Statistical Lookback", minval=20, tooltip="The rolling window used to calculate the Mean and Standard Deviation (Sigma).", group=group_data)

group_filter = "Institutional Filters"
z_vol_thresh = input.float(2.0, "Min Volume Z-Score (σ)", step=0.1, tooltip="The 'Rarity Threshold'.\nA value of 2.0 means the volume must be 2 Standard Deviations higher than the average to trigger a bubble (top 5% of events).", group=group_filter)
z_px_thresh  = input.float(2.0, "Min Price Z-Score (σ)", step=0.1, tooltip="Ensures the price move is also statistically significant, filtering out high-volume 'doji' chop.", group=group_filter)
use_div      = input.bool(true, "Highlight CVD Divergences", tooltip="Enables the Blue/Orange bubbles.\nDetects when Price and Volume Delta move in opposite directions (Absorption/Iceberg orders).", group=group_filter)

group_vis    = "Visuals"
show_bull    = input.bool(true, "Show Bullish Events", group=group_vis)
show_bear    = input.bool(true, "Show Bearish Events", group=group_vis)
scale_size   = input.bool(true, "Dynamic Bubble Size", tooltip="If enabled, bubbles grow larger based on their Z-Score.\nSmall = 2σ event.\nLarge = >3σ (Rare event).", group=group_vis)
show_ghosts  = input.bool(true, "Show Liquidity Memory (Ghost Lines)", group=group_vis, tooltip="Draws extended dotted lines from MAJOR institutional events.\nThese levels often act as future 'Defended' Support/Resistance.")

group_dash   = "Dashboard"
show_dash    = input.bool(true, "Show Info Dashboard", group=group_dash)
dash_pos     = input.string(position.top_right, "Position", options=[position.top_right, position.bottom_right, position.bottom_left, position.top_left], group=group_dash)
dash_size    = input.string(size.normal, "Size", options=[size.small, size.normal, size.large, size.huge], group=group_dash)

// ==========================================
// 🔹 ENGINE 1: HYBRID DATA AGGREGATION
// ==========================================
[vol_delta, vol_total] = request.security_lower_tf(syminfo.tickerid, tf_lower, [volume * (close >= open ? 1 : -1), volume], ignore_invalid_symbol = true)

float bar_delta = 0.0
float bar_vol   = 0.0

// Data Quality Check
if array.size(vol_delta) > 0
    bar_delta := array.sum(vol_delta)
    bar_vol   := array.sum(vol_total)
else
    float mfm = (high - low) != 0 ? ((close - low) - (high - close)) / (high - low) : 0
    bar_delta := volume * mfm
    bar_vol   := volume

float metric_raw = src_vol == "Volume Delta" ? bar_delta : bar_vol
float metric_abs = math.abs(metric_raw)

// ==========================================
// 🔹 ENGINE 2: THE Z-SCORE MATRIX
// ==========================================
vol_mean   = ta.sma(metric_abs, len_stat)
vol_std    = ta.stdev(metric_abs, len_stat)
vol_z      = vol_std != 0 ? (metric_abs - vol_mean) / vol_std : 0.0

px_mean    = ta.sma(close, len_stat)
px_std     = ta.stdev(close, len_stat)
px_z       = px_std != 0 ? (close - px_mean) / px_std : 0.0

// ==========================================
// 🔹 ENGINE 3: LOGIC GATES
// ==========================================
is_vol_event = vol_z >= z_vol_thresh
is_px_event  = math.abs(px_z) >= z_px_thresh

bool is_bull_div = (close < open) and (bar_delta > 0)
bool is_bear_div = (close > open) and (bar_delta < 0)

bool valid_trigger = is_vol_event and (is_px_event or (use_div and (is_bull_div or is_bear_div)))

// ==========================================
// 🔹 VISUALIZATION & GHOST LINES
// ==========================================
color col_bull      = color.new(#00E676, 20)
color col_bear      = color.new(#FF1744, 20)
color col_absorb_bu = color.new(#2962FF, 10)
color col_absorb_be = color.new(#FF6D00, 10)

// Storage for Dashboard (Last 5 Events)
// Structure: [Time, Type (0=Bull, 1=Bear, 2=AbsorbBuy, 3=AbsorbSell), Z-Score]
var float[] log_times = array.new_float()
var int[]   log_types = array.new_int()
var float[] log_z     = array.new_float()

// Array to manage Ghost Lines
var line[] active_lines = array.new_line()

if valid_trigger
    bool is_up = metric_raw > 0
    color bubble_col = na
    string tooltip_txt = ""
    int event_type = 0

    // 1. Determine Color & Type
    if is_bull_div
        bubble_col := col_absorb_bu
        tooltip_txt := "🛑 ABSORPTION BUY (Iceberg)\nPrice Down / Delta Up\nBias: Reversal Long"
        event_type := 2
    else if is_bear_div
        bubble_col := col_absorb_be
        tooltip_txt := "🛑 ABSORPTION SELL (Iceberg)\nPrice Up / Delta Down\nBias: Reversal Short"
        event_type := 3
    else
        bubble_col := is_up ? col_bull : col_bear
        tooltip_txt := is_up ? "🚀 MOMENTUM BUY (Aggression)" : "🔻 MOMENTUM SELL (Aggression)"
        event_type := is_up ? 0 : 1

    // 2. Build Tooltip
    tooltip_txt := tooltip_txt + "\n\n📊 Vol Z: " + str.tostring(vol_z, "#.##") + "σ"
    tooltip_txt := tooltip_txt + "\n💧 Delta: " + str.tostring(bar_delta, format.volume)
    string quality_tag = array.size(vol_delta) > 0 ? " (High Res)" : " (Est)"
    tooltip_txt := tooltip_txt + "\nData Quality:" + quality_tag

    // 3. Determine Size
    string size_bubble = size.tiny
    if scale_size
        if vol_z > z_vol_thresh + 2.0
            size_bubble := size.normal
        else if vol_z > z_vol_thresh + 1.0
            size_bubble := size.small

    float anchor_price = (high + low + close) / 3

    // 4. Plot Bubble
    if (metric_raw > 0 and show_bull) or (metric_raw < 0 and show_bear)
        label.new(bar_index, anchor_price,
                  text=str.tostring(metric_raw, format.volume),
                  style=label.style_circle,
                  color=bubble_col,
                  textcolor=color.white,
                  size=size_bubble,
                  tooltip=tooltip_txt)

        // Store Event for Dashboard
        array.unshift(log_times, time)
        array.unshift(log_types, event_type)
        array.unshift(log_z, vol_z)
        // Keep only last 10 in memory to save resources
        if array.size(log_times) > 10
            array.pop(log_times)
            array.pop(log_types)
            array.pop(log_z)

        // 5. DRAW GHOST LINES
        bool is_significant = (size_bubble == size.normal) or (size_bubble == size.large)
        if show_ghosts and is_significant
            float defense_level = is_up ? low : high
            color line_col      = color.new(bubble_col, 50)
            line new_line = line.new(bar_index, defense_level, bar_index + 50, defense_level,
                                     color=line_col, style=line.style_dotted, width=1)
            array.push(active_lines, new_line)
            if array.size(active_lines) > 10
                line.delete(array.shift(active_lines))

// ==========================================
// 🔹 DASHBOARD RENDER
// ==========================================

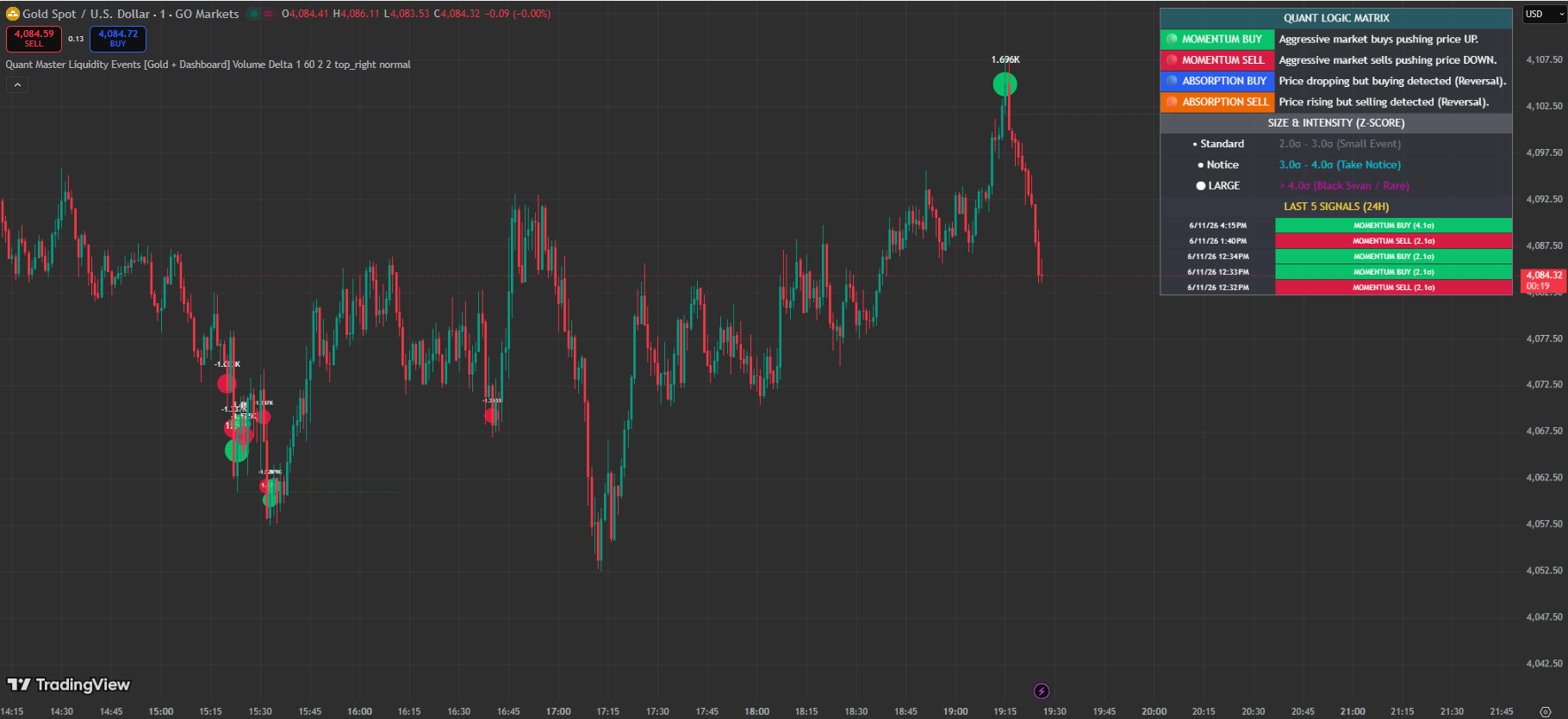

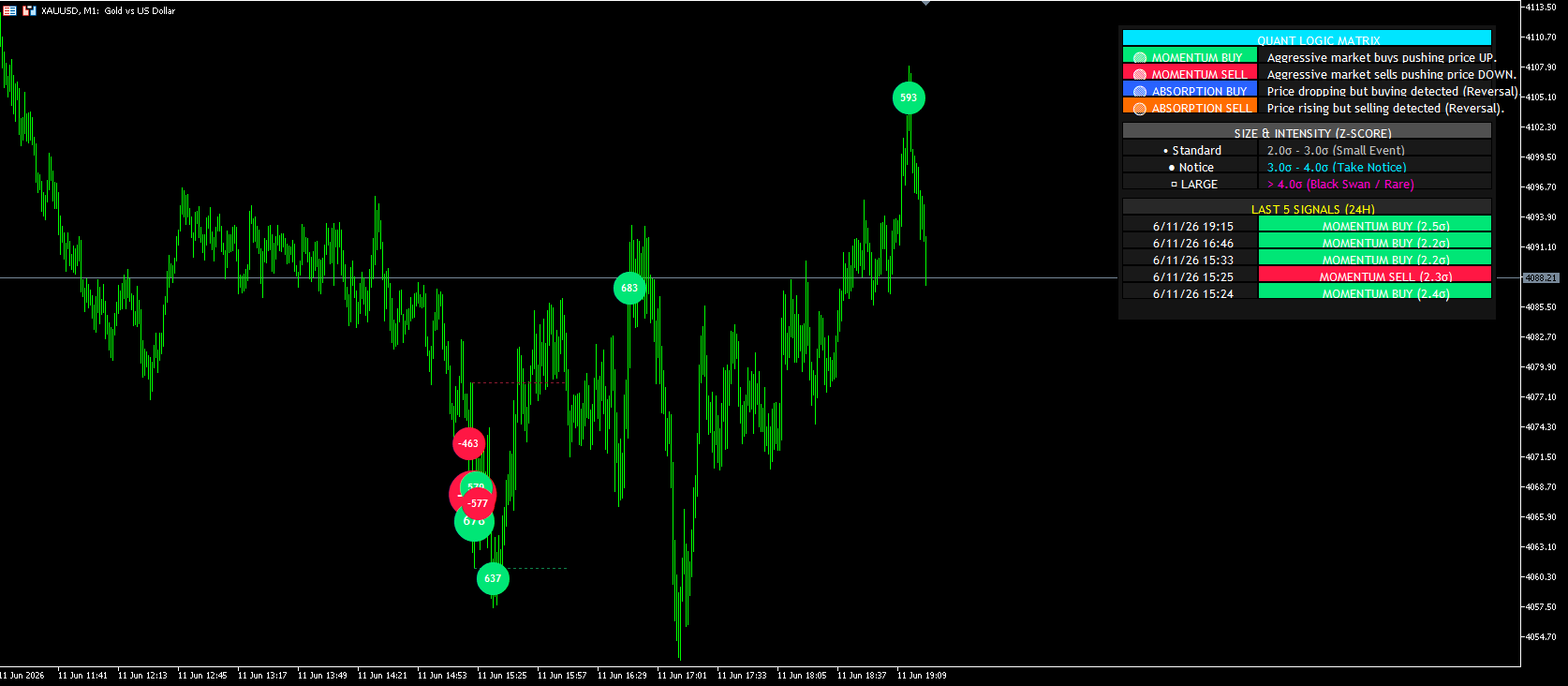

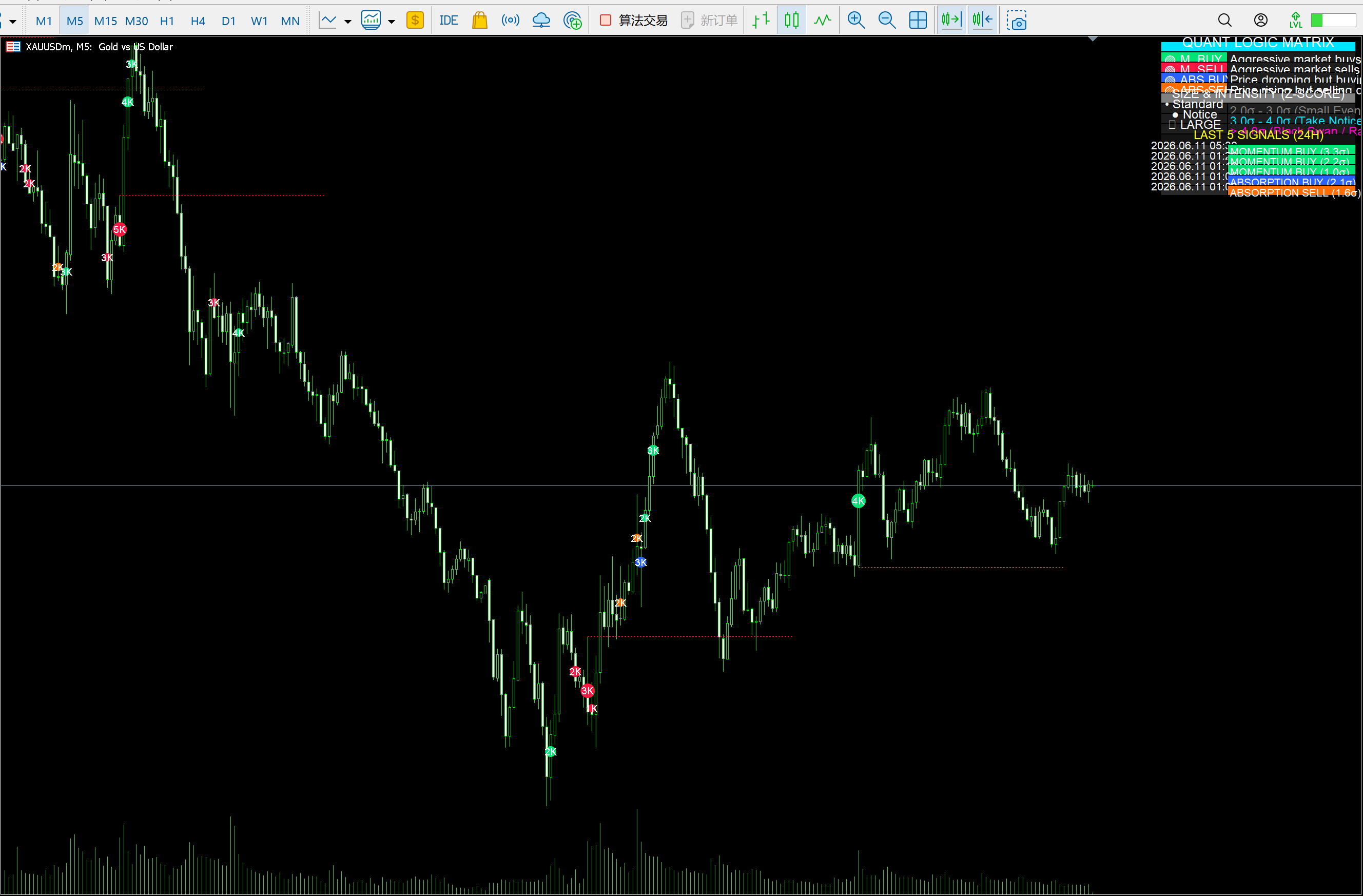

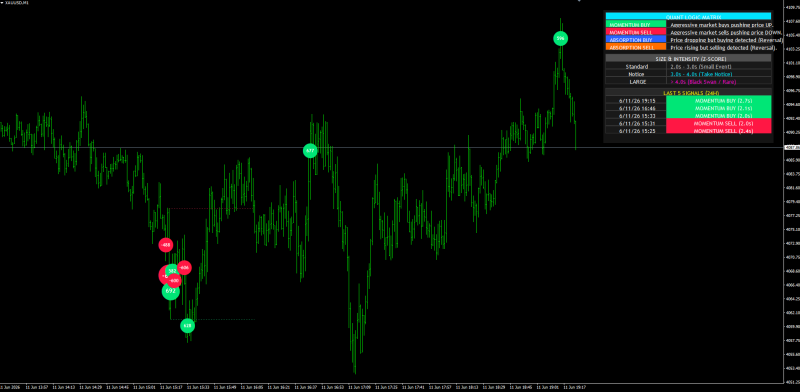

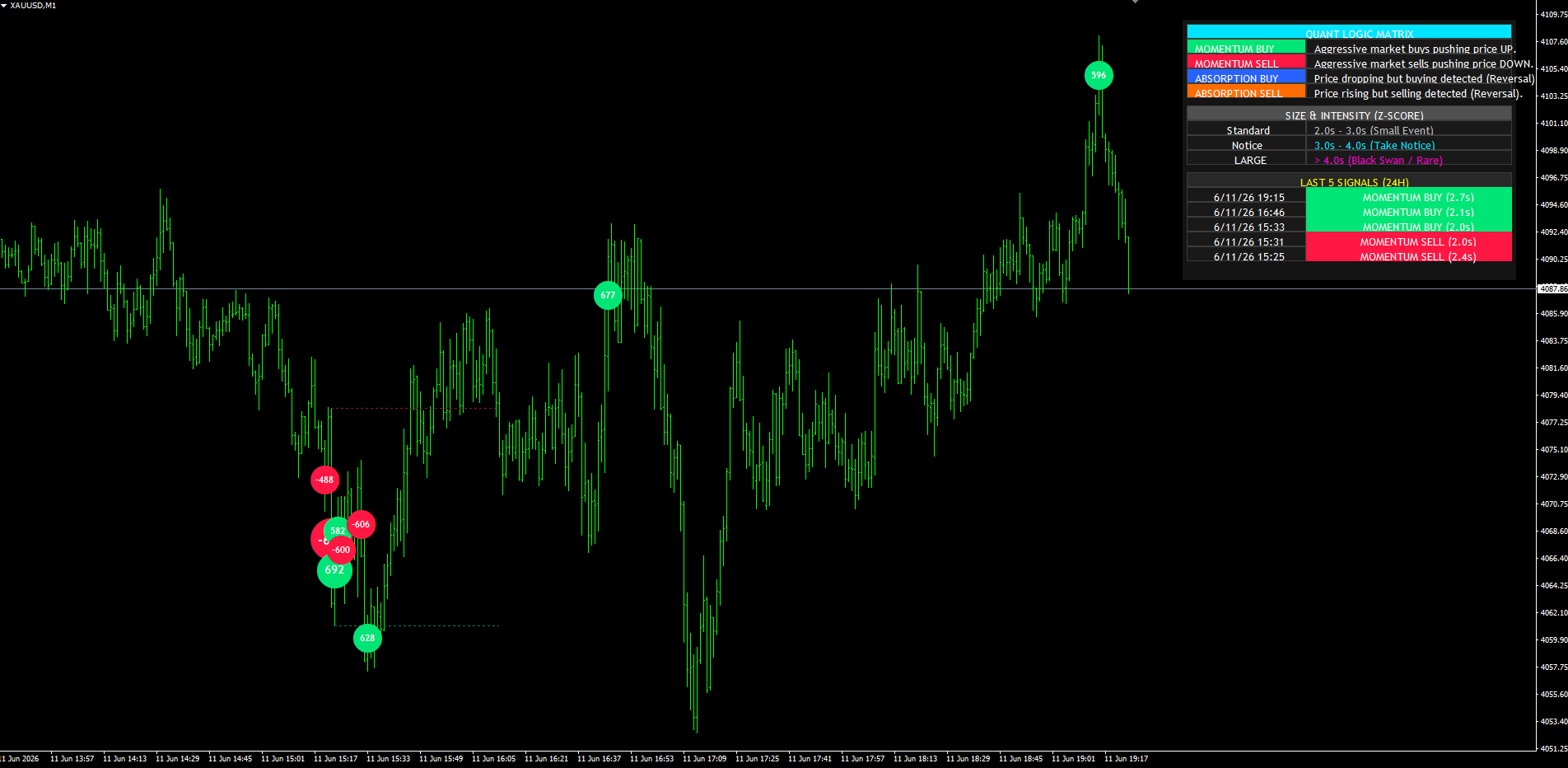

if show_dash and barstate.islast
    // Increased row count to 16 to accommodate new legend
    tbl = table.new(dash_pos, 2, 16, bgcolor=color.new(color.black, 50), frame_color=color.gray, frame_width=1, border_width=1)

    // --- HEADER ---
    table.merge_cells(tbl, 0, 0, 1, 0)
    table.cell(tbl, 0, 0, "QUANT LOGIC MATRIX", text_color=color.white, bgcolor=color.new(#00E5FF, 80), text_size=dash_size)

    // --- COLOR LEGEND ---
    table.cell(tbl, 0, 1, "🟢 MOMENTUM BUY", text_color=color.white, bgcolor=col_bull, text_size=dash_size, text_halign=text.align_left)
    table.cell(tbl, 1, 1, "Aggressive market buys pushing price UP.", text_color=color.white, text_size=dash_size, text_halign=text.align_left)

    table.cell(tbl, 0, 2, "🔴 MOMENTUM SELL", text_color=color.white, bgcolor=col_bear, text_size=dash_size, text_halign=text.align_left)
    table.cell(tbl, 1, 2, "Aggressive market sells pushing price DOWN.", text_color=color.white, text_size=dash_size, text_halign=text.align_left)

    table.cell(tbl, 0, 3, "🔵 ABSORPTION BUY", text_color=color.white, bgcolor=col_absorb_bu, text_size=dash_size, text_halign=text.align_left)
    table.cell(tbl, 1, 3, "Price dropping but buying detected (Reversal).", text_color=color.white, text_size=dash_size, text_halign=text.align_left)

    table.cell(tbl, 0, 4, "🟠 ABSORPTION SELL", text_color=color.white, bgcolor=col_absorb_be, text_size=dash_size, text_halign=text.align_left)
    table.cell(tbl, 1, 4, "Price rising but selling detected (Reversal).", text_color=color.white, text_size=dash_size, text_halign=text.align_left)

    // --- SIZE LEGEND (NEW) ---
    table.merge_cells(tbl, 0, 5, 1, 5)
    table.cell(tbl, 0, 5, "SIZE & INTENSITY (Z-SCORE)", text_color=color.white, bgcolor=color.new(color.gray, 50), text_size=dash_size)

    // Small
    table.cell(tbl, 0, 6, "• Standard", text_color=color.white, text_size=dash_size, text_halign=text.align_center)
    table.cell(tbl, 1, 6, "2.0σ - 3.0σ (Small Event)", text_color=color.gray, text_size=dash_size, text_halign=text.align_left)

    // Medium
    table.cell(tbl, 0, 7, "● Notice", text_color=color.white, text_size=dash_size, text_halign=text.align_center)
    table.cell(tbl, 1, 7, "3.0σ - 4.0σ (Take Notice)", text_color=color.new(#00E5FF, 20), text_size=dash_size, text_halign=text.align_left)

    // Large
    table.cell(tbl, 0, 8, "⬤ LARGE", text_color=color.white, text_size=dash_size, text_halign=text.align_center)
    table.cell(tbl, 1, 8, "> 4.0σ (Black Swan / Rare)", text_color=color.new(#FF00CC, 20), text_size=dash_size, text_halign=text.align_left)

    // --- LOGS ---
    table.merge_cells(tbl, 0, 9, 1, 9)
    table.cell(tbl, 0, 9, "LAST 5 SIGNALS (24H)", text_color=color.yellow, bgcolor=color.new(color.black, 20), text_size=dash_size)

    // Log Logic
    int rows_printed = 0
    int size_log = array.size(log_times)

    if size_log > 0
        for i = 0 to size_log - 1
            if rows_printed >= 5
                break

            t_event = array.get(log_times, i)

            if (timenow - t_event) < 86400000
                type_e = array.get(log_types, i)
                z_score = array.get(log_z, i)

                string type_str = ""
                color type_col = color.gray

                if type_e == 0
                    type_str := "MOMENTUM BUY"
                    type_col := col_bull
                else if type_e == 1
                    type_str := "MOMENTUM SELL"
                    type_col := col_bear
                else if type_e == 2
                    type_str := "ABSORPTION BUY"
                    type_col := col_absorb_bu
                else if type_e == 3
                    type_str := "ABSORPTION SELL"
                    type_col := col_absorb_be

                string t_str = str.format("{0,date,short} {0,time,short}", t_event)
                string val_str = type_str + " (" + str.tostring(z_score, "#.1") + "σ)"

                table.cell(tbl, 0, 10 + rows_printed, t_str, text_color=color.white, text_size=size.small, bgcolor=color.new(color.black, 60))
                table.cell(tbl, 1, 10 + rows_printed, val_str, text_color=color.white, bgcolor=type_col, text_size=size.small)

                rows_printed := rows_printed + 1
    else
        table.merge_cells(tbl, 0, 10, 1, 10)
        table.cell(tbl, 0, 10, "No recent whale activity...", text_color=color.gray, text_size=dash_size)

alertcondition(valid_trigger, "Quant Liquidity Event", "Institutional Volume Spike Detected")

Abdi wrote: Sun Jun 14, 2026 10:28 pm Xiannan and volume, it seems like you don't understand or don't want to understand. Pelle shared with you everything you need to adjust the indicator, the source codes for tradingview, mt4 and mt5 . He said he doesn't use it and doesn't want to work on it and you still insist in him to continuously adjust the code for you.

Use AI till it works, pay someone or just leave it, but stop asking, when he already made clear he doesn't want to work on that indicator.
