TradingView Indicators to MT4 Indicators

Code: Select all

 This is actually a **very sophisticated indicator**, and understanding it properly requires breaking it into several layers:

1. **The Kalman filter engine**
2. **The oscillator extracted from the Kalman model**
3. **Trend strength normalization**
4. **Smoothing and signal logic**
5. **Visual interpretation (signals for traders)**

I will walk through **exactly what the indicator is doing mathematically and logically**, and then explain **how it generates signals in trading terms**.

---

# 1. Core Concept of the Indicator

The **Adaptive Kalman Trend Strength Oscillator** is essentially a **Kalman-filter-based trend detector** that converts the **hidden velocity of price** into a **normalized oscillator representing trend strength**.

In simple terms:

**Price → Kalman Filter → Extract price velocity → Normalize → Smooth → Trend Strength Oscillator**

So instead of measuring trend with:

* moving averages
* RSI
* MACD

…it measures **the internal motion of price estimated by a Kalman filter model**.

---

# 2. The Kalman Filter Model

This indicator uses a **2-state Kalman filter**.

The two states are:

```
State 1 = Estimated Price
State 2 = Estimated Trend Velocity
```

This is implemented here:

```
var X = array.from(0.0, 0.0)
```

Where:

```
X[0] = filtered price estimate
X[1] = trend velocity (oscillator)
```

---

## State Transition Model

The filter predicts the next state using matrix **F**:

```
F =
[1 1]
[0 1]
```

Meaning:

```
New Price = Old Price + Velocity
New Velocity = Old Velocity
```

So the model assumes:

**Price changes according to its velocity**.

This is exactly how many **institutional signal processing models** estimate trend.

---

# 3. Kalman Prediction Step

Each bar:

```
x1 = F00 * price + F01 * velocity
x2 = F11 * velocity
```

Which becomes:

```
x1 = price + velocity
x2 = velocity
```

So the filter predicts where price *should* go based on current velocity.

Then uncertainty is updated:

```
P = F * P * F' + Q
```

Where:

**P** = covariance matrix
**Q** = process noise

---

# 4. Adaptive Noise Models

The indicator offers **three Kalman filter models**:

### 1️⃣ Standard

Uses constant measurement noise.

```
R = measurement_noise
```

This produces **stable smoothing**.

---

### 2️⃣ Volume Adjusted

Measurement noise is scaled by **volume change**.

```
R_adjusted = R * volume[1] / min(volume[1], volume)
```

Meaning:

If **volume rises**, the filter trusts price **more**.

This makes the filter **react faster during high activity**.

---

### 3️⃣ Parkinson Adjusted

Uses **high-low volatility**.

```
range_ratio = current_range / previous_range
parkinson_scaled = 1 + range_ratio
```

Meaning:

When **range expands**, measurement noise increases.

This causes the filter to **adapt to volatility spikes**.

---

# 5. Measurement Update

Kalman correction step:

```
innovation = actual price - predicted price
```

Then the **Kalman gain** determines how much to adjust:

```
K = P * H' * (H * P * H' + R)^-1
```

Then state update:

```
X = X + K * innovation
```

So the filter continuously **balances prediction vs real price**.

---

# 6. What the Oscillator Actually Is

This is the most important line in the code:

```
oscillator = array.get(X, 1)
```

Remember:

```
X[1] = velocity estimate
```

So the oscillator is simply:

**Estimated price velocity.**

Meaning:

```
positive velocity → price trending up
negative velocity → price trending down
```

---

# 7. Converting Velocity Into Trend Strength

Velocity alone isn't useful because it depends on price scale.

So the indicator **normalizes it**.

First it stores velocity values:

```
array.push(osc_buffer, oscillator)
```

Then it finds the **maximum absolute velocity** in the lookback:

```
A = osc_buffer.abs().max()
```

Then normalizes:

```
trend_strength = oscillator / A * 100
```

This creates a **percentage scale**.

```
+100 = strongest uptrend in lookback
-100 = strongest downtrend
```

---

# 8. Trend Strength Smoothing

Two layers of smoothing exist.

### Oscillator smoothing

```
plot(ta.wma(trend_strength,R1))
```

### Strength smoothing

```
trend_strength := ta.wma(...,R2)
```

So the final oscillator is **double smoothed**.

This prevents noisy spikes.

---

# 9. Signal Levels

The indicator defines levels:

```
70  = strong uptrend
0   = neutral
-70 = strong downtrend
```

These are **trend strength zones**.

---

# 10. Color Gradient Logic

The indicator converts trend strength into **visual intensity**.

```
num_segments = 10
segment_width = 10
```

Meaning each segment equals **10% strength**.

The stronger the trend:

```
more segments light up
```

Color rules:

```
positive strength → green gradient
negative strength → red gradient
neutral → blue
```

So visually you see **trend acceleration**.

---

# 11. Secondary Plot (Important)

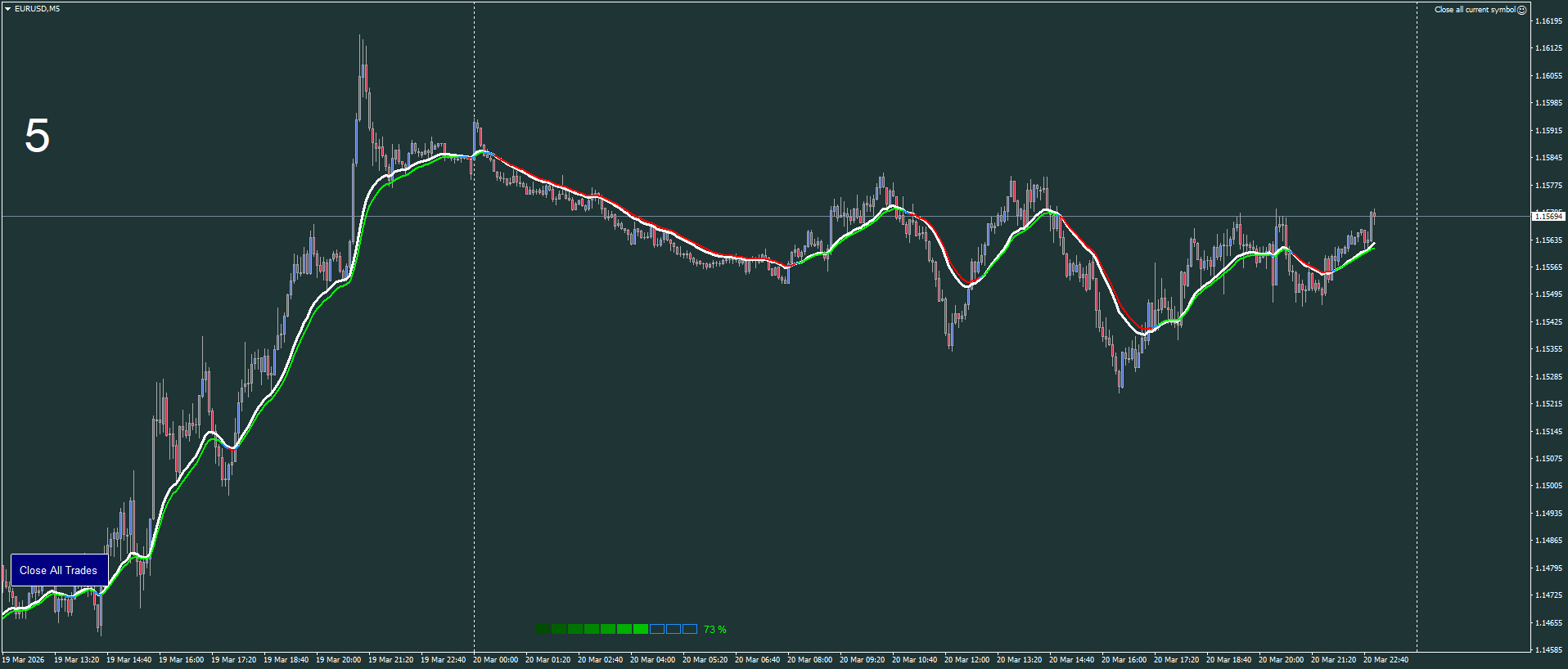

The script also plots the **Kalman filtered price**:

```
kalmanPlot = plot(filtered_src)
```

This is **not the oscillator**.

It is the **smoothed price estimate from the Kalman filter**.

Think of it like a **super-adaptive moving average**.

---

# 12. What the Indicator Is Measuring (True Meaning)

Most oscillators measure:

* overbought/oversold
* momentum
* mean reversion

This indicator measures something different:

**Trend velocity strength.**

Specifically:

```
Trend Strength =
Normalized Kalman Estimated Velocity
```

---

# 13. Trading Interpretation

### Strong Uptrend

When oscillator > 70

Meaning:

```
price acceleration upward is strong
```

Use case:

```
trend continuation entries
```

---

### Strong Downtrend

When oscillator < -70

Meaning:

```
price acceleration downward is strong
```

Use case:

```
short continuation
```

---

### Zero Line Cross

When oscillator crosses **0**:

```
velocity changes direction
```

Meaning:

```
trend reversal beginning
```

---

### Rising Strength

When oscillator rises from:

```
20 → 50 → 80
```

It means:

```
trend acceleration is increasing
```

This often happens **before large moves**.

---

### Falling Strength

When oscillator drops:

```
90 → 60 → 30
```

It means:

```
trend momentum is weakening
```

Often precedes **trend exhaustion**.

---

# 14. What Makes This Indicator Unique

Compared to standard indicators:

| Indicator | Measures                   |
| --------- | -------------------------- |
| RSI       | mean reversion             |
| MACD      | moving average difference  |
| ADX       | directional trend strength |
| CCI       | deviation from mean        |

This indicator measures:

**Hidden trend velocity estimated via Kalman filtering.**

This makes it:

* smoother
* more adaptive
* less laggy

---

# 15. Potential Weaknesses

Despite its sophistication:

### Lag from smoothing

Two WMAs add delay.

---

### Normalization distortion

Using:

```
max(abs(velocity))
```

means the oscillator **rescales constantly**.

So historical values shift slightly.

---

### Sensitivity to parameters

Changing:

```
process_noise
measurement_noise
```

can radically change behaviour.

---

# 16. Why This Indicator Can Work Well in Forex

Forex trends are often:

```
slow → accelerating → exhaustion
```

This indicator captures exactly that pattern because it measures:

**trend acceleration**.

---

# 17. The Hidden Insight

The oscillator is effectively detecting:

```
d(price) / dt
```

But **Kalman-smoothed**.

Meaning it estimates **true market velocity**, not just candle change.

---

# 18. Summary

The indicator works as follows:

1️⃣ Kalman filter estimates **true price and velocity**

2️⃣ Velocity becomes the **oscillator**

3️⃣ Velocity is normalized into **trend strength %**

4️⃣ Strength is smoothed

5️⃣ Gradient colors visualize trend intensity

---

### In one sentence:

**This indicator measures the strength of price trend by estimating the hidden velocity of price using an adaptive Kalman filter and converting that velocity into a normalized oscillator.**

Code: Select all

//+------------------------------------------------------------------+
//| BBMA OA by Jimbo - GOD MODE FULL                                |
//+------------------------------------------------------------------+
#property indicator_chart_window

// ===== INPUT =====
input int BB_Period = 20;
input double BB_Deviation = 2.0;
input int EMA50_Period = 50;
input int EMA200_Period = 200;

input bool EnableAlert = true;
input bool ShowZone = true;

// ===== FUNCTION =====
double EMA(int tf,int p){ return iMA(NULL,tf,p,0,MODE_EMA,PRICE_CLOSE,0); }
double CLOSE(int tf){ return iClose(NULL,tf,0); }

// ===== INIT =====
int OnInit(){ return(INIT_SUCCEEDED); }

// ===== MAIN =====
int OnCalculate(const int rates_total,
                const int prev_calculated,
                const datetime &time[],
                const double &open[],
                const double &high[],
                const double &low[],
                const double &close[],
                const long &tick_volume[],
                const long &volume[],
                const int &spread[])
{
   int i=0;

   // ===== CORE =====
   double ema50 = iMA(NULL,0,EMA50_Period,0,MODE_EMA,PRICE_CLOSE,i);
   double ema200= iMA(NULL,0,EMA200_Period,0,MODE_EMA,PRICE_CLOSE,i);

   double ma5H  = iMA(NULL,0,5,0,MODE_LWMA,PRICE_HIGH,i);
   double ma5L  = iMA(NULL,0,5,0,MODE_LWMA,PRICE_LOW,i);
   double ma10H = iMA(NULL,0,10,0,MODE_LWMA,PRICE_HIGH,i);
   double ma10L = iMA(NULL,0,10,0,MODE_LWMA,PRICE_LOW,i);

   double upperBB = iBands(NULL,0,BB_Period,0,BB_Deviation,PRICE_CLOSE,MODE_UPPER,i);
   double lowerBB = iBands(NULL,0,BB_Period,0,BB_Deviation,PRICE_CLOSE,MODE_LOWER,i);
   double midBB   = iBands(NULL,0,BB_Period,0,BB_Deviation,PRICE_CLOSE,MODE_MAIN,i);

   // ===== MTF =====
   double h4 = CLOSE(PERIOD_H4);
   double h1 = CLOSE(PERIOD_H1);
   double m15= CLOSE(PERIOD_M15);

   double h4e = EMA(PERIOD_H4,EMA50_Period);
   double h1e = EMA(PERIOD_H1,EMA50_Period);
   double m15e= EMA(PERIOD_M15,EMA50_Period);

   string H4 = (h4>h4e)?"BULL STR":"BEAR STR";
   string H1 = (h1>h1e)?"BULL":"BEAR";
   string M15= (m15>m15e)?"BULL":"BEAR";

   // ===== BBMA STRUCTURE =====
   bool EXTREME_BUY = (low[i] < lowerBB);
   bool EXTREME_SELL= (high[i] > upperBB);

   bool MHV_BUY = (close[i] > midBB && low[i] <= midBB);
   bool MHV_SELL= (close[i] < midBB && high[i] >= midBB);

   bool CSAK_BUY = (close[i] > midBB);
   bool CSAK_SELL= (close[i] < midBB);

   bool CSM_BUY = (close[i] > upperBB);
   bool CSM_SELL= (close[i] < lowerBB);

   // ===== SCORE (%) =====
   int score=0;
   if(EXTREME_BUY || EXTREME_SELL) score+=20;
   if(MHV_BUY || MHV_SELL) score+=20;
   if(CSAK_BUY || CSAK_SELL) score+=20;
   if(CSM_BUY || CSM_SELL) score+=20;

   // ===== RE-ENTRY =====
   bool buyRe = (close[i] > ema50 && close[i] <= ma10L);
   bool sellRe= (close[i] < ema50 && close[i] >= ma10H);

   if(buyRe || sellRe) score+=20;

   int percent = score;

   // ===== GRADE =====
   string grade="C";
   if(percent>=80) grade="A+";
   else if(percent>=60) grade="A";
   else if(percent>=40) grade="B";

   // ===== WARNING =====
   bool warning=false;
   if(buyRe && m15<m15e) warning=true;
   if(sellRe && m15>m15e) warning=true;

   bool invalid=false;
   if(buyRe && close[i]<midBB) invalid=true;
   if(sellRe && close[i]>midBB) invalid=true;

   // ===== FAKE BREAKOUT =====
   double candleSize = high[0] - low[0];
   double bodySize = MathAbs(close[0] - open[0]);
   bool fakeBreakout = (candleSize > bodySize*3);

   // ===== GOD MODE FILTER =====
   bool godMode=false;

   if(percent>=85 &&
      ((H4=="BULL STR" && H1=="BULL" && M15=="BULL") ||
       (H4=="BEAR STR" && H1=="BEAR" && M15=="BEAR")) &&
      (buyRe || sellRe) &&
      !warning &&
      !invalid &&
      !fakeBreakout)
   {
      godMode=true;
   }

   // ===== ENTRY =====
   string ENTRY="NONE";
   if(godMode)
   {
      if(buyRe) ENTRY="🔥 SNIPER BUY";
      if(sellRe) ENTRY="🔥 SNIPER SELL";
   }

   // ===== PRICE / TP SL =====
   double entryPrice = close[0];
   double SL=0, TP1=0, TP2=0;

   if(buyRe)
   {
      SL = ma10L;
      TP1 = entryPrice + (entryPrice - SL)*2;
      TP2 = entryPrice + (entryPrice - SL)*3;
   }

   if(sellRe)
   {
      SL = ma10H;
      TP1 = entryPrice - (SL - entryPrice)*2;
      TP2 = entryPrice - (SL - entryPrice)*3;
   }

   // ===== DRAW ZONE =====
   if(ShowZone)
   {
      string z="ZONE";
      ObjectDelete(z);

      color c=clrLime;
      if(warning) c=clrOrange;
      if(invalid) c=clrMaroon;

      if(buyRe)
         ObjectCreate(z,OBJ_RECTANGLE,0,Time[10],ma10L,Time[0],ma5L);

      if(sellRe)
         ObjectCreate(z,OBJ_RECTANGLE,0,Time[10],ma5H,Time[0],ma10H);

      ObjectSetInteger(0,z,OBJPROP_COLOR,c);
   }

   // ===== DASHBOARD =====
   Comment(
   "=== BBMA OA GOD MODE ===\n",
   "H4: ",H4,"\n",
   "H1: ",H1,"\n",
   "M15: ",M15,"\n",
   "ENTRY: ",ENTRY,"\n",
   "CONFIDENCE: ",percent,"%\n",
   "PRICE: ",DoubleToString(entryPrice,2),"\n",
   "SL: ",DoubleToString(SL,2),"\n",
   "TP1: ",DoubleToString(TP1,2),"\n",
   "TP2: ",DoubleToString(TP2,2)
   );

   // ===== ALERT =====
   static datetime last;
   if(EnableAlert && Time[0]!=last && godMode)
   {
      Alert(Symbol()," 🔥 SNIPER ",
      "Entry:",DoubleToString(entryPrice,2),
      " SL:",DoubleToString(SL,2),
      " TP1:",DoubleToString(TP1,2),
      " TP2:",DoubleToString(TP2,2),
      " ",percent,"%");
      last=Time[0];
   }

   return(rates_total);
}
