Re: Something interesting from Chatgpt/AI please post here

191 by JohnL33
A! OHLC Pro

This indicator will draw four small horizontal lines for each of the most recent bars at their respective High, Open, Close, and Low prices. All four lines for a single bar will be colored blue (or your chosen color) if the bar is bullish (Close >= Open) and red (or your chosen color) if the bar is bearish (Close < Open).

Just For Fun..Hope Someone Like It..Maybe Can See The Pattern..Who Know..Only You Can See It.
Enjou
These users thanked the author JohnL33 for the post (total 2):
Eis, Hogwildsavage
"My Forex Holy Grail? Sure, I'll share it. It's a magical PDF that costs $997 and the first chapter is titled: 'How to Sell a $997 PDF.'"😎

Re: Something interesting from Chatgpt/AI please post here

192 by Eis
JohnL33 wrote: Tue Jul 08, 2025 1:25 am A! OHLC Pro

This indicator will draw four small horizontal lines for each of the most recent bars at their respective High, Open, Close, and Low prices. All four lines for a single bar will be colored blue (or your chosen color) if the bar is bullish (Close >= Open) and red (or your chosen color) if the bar is bearish (Close < Open).

Just For Fun..Hope Someone Like It..Maybe Can See The Pattern..Who Know..Only You Can See It.
Enjou

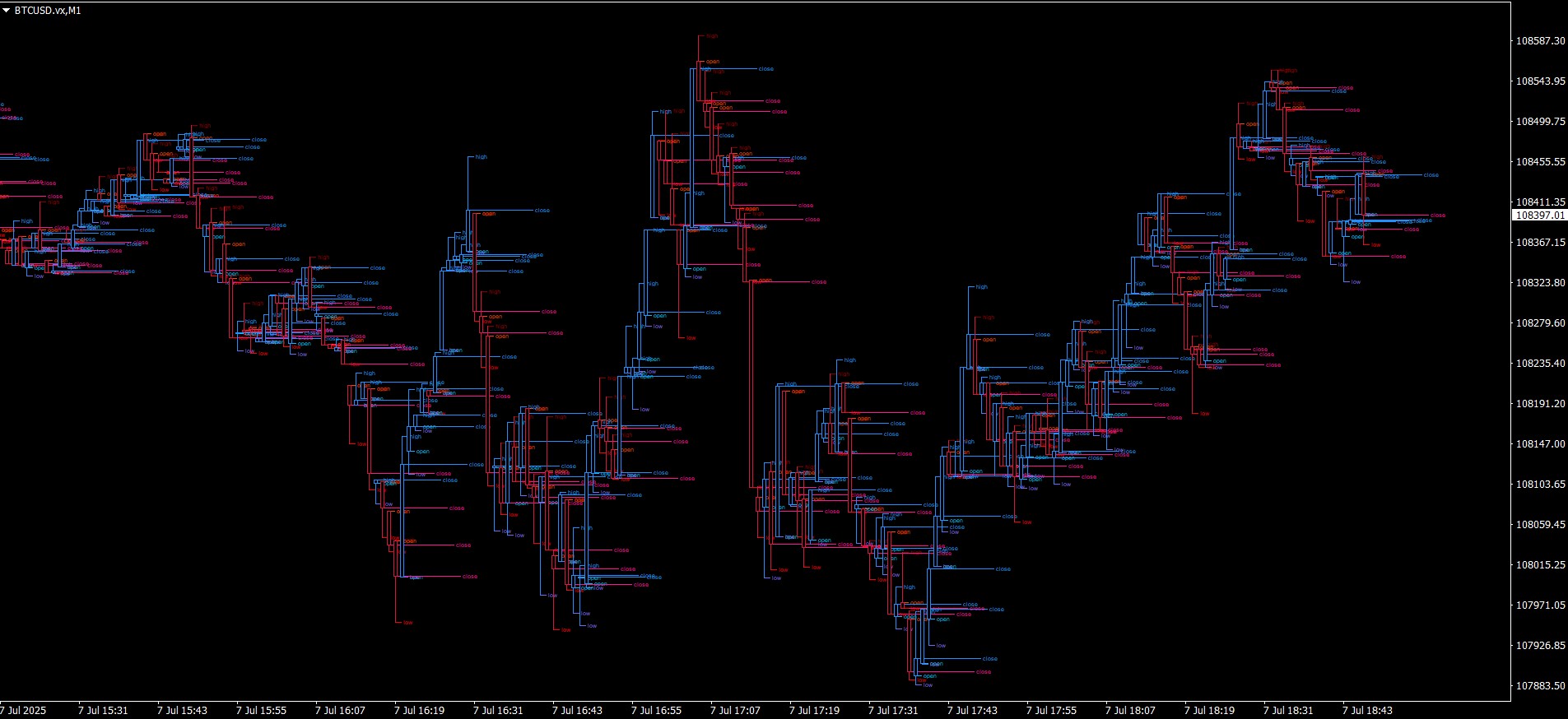

Imbalance Indicator or Fvg sort of
Intrigued

Re: Something interesting from Chatgpt/AI please post here

196 by nine
here is a simple atr volatility switch - i am messing with wanted to post, i may include as a filter for a severe slope signal strategy i have been working on basic setting usually indicate the more aggressive price action moves i am targeting looked around not sure i seen to many things like this but they may be on here some where?
These users thanked the author nine for the post:
JohnL33

Re: Something interesting from Chatgpt/AI please post here

198 by JohnL33
ionone wrote: Mon Jul 14, 2025 11:39 pm the problem with AI chat bots is that they feed on what's on the web. There is no other source.

but then we will find more and more stuff on the web that is AI generated, so the AI will feed on itself and not evolve

which is why I think we'll see a distinction between orginal content and AI generated on the web (in general)
Yes ...agree..but its fun and feel great to create something that can help with trading.Yes it 100% not perfect and ai also still learning.
Maybe someday...it will evolve and less error when compile.
"My Forex Holy Grail? Sure, I'll share it. It's a magical PDF that costs $997 and the first chapter is titled: 'How to Sell a $997 PDF.'"😎

CodeRe: Something interesting from Chatgpt/AI please post here

199 by Pelle
I tried to make that hxxps://www.tradingview.com/script/d3Ia (replace xx to tt)Fa7c-Trend-Impulse-Channels-Zeiierman/ for MT5, yes it draws those channels and arrows and gives alerts too. It's just surprising when even such close TFs as M5 and M6 draw different channels.

But the source code is available to everyone. This is made with Grok4. Do you get it/like it? continue to refine

Code: Select all

// This work is licensed under a Attribution-NonCommercial-ShareAlike 4.0 International (CC BY-NC-SA 4.0) https://creativecommons.org/licenses/by-nc-sa/4.0/

// © Zeiierman

#property copyright "Zeiierman"
#property link      ""
#property version   "1.00"
#property strict
#property indicator_chart_window
#property indicator_buffers 10
#property indicator_plots 7

// Inputs
input double flipMult = 2.86; // Trigger Threshold
input double maxStepAtr = -0.034; // Max Step Size
input double bandMult = 2.02; // Band Multiplier
input int holdBars = 0; // Trend Hold
input color colorUp = clrLime;
input color colorDown = clrRed;
input bool showFill = true; // Channel Fill
input bool ChannelRetestSignal = true; // Retest Signals
input bool TrendFilter = true; // Filter by Trend
input color colorUp2 = clrLime;
input color colorDown2 = clrRed;
input bool TrendStepSignal = false; // Trend Step Signals
input color colorUp3 = clrLime;
input color colorDown3 = clrRed;

// Buffers
double TrendBuffer[];
double TrendColors[];
double UpperBuffer[];
double UpperColors[];
double LowerBuffer[];
double LowerColors[];
double LowerRetestBuf[];
double UpperRetestBuf[];
double BullStepBuf[];
double BearStepBuf[];

// Calculation arrays
double dirArray[];
double barsInTrendArray[];
double extensionArray[];

// ATR handle
int atrHandle;

// OnInit
int OnInit()
{
  IndicatorSetString(INDICATOR_SHORTNAME, "Trend Impulse Channels (Zeiierman)");

  SetIndexBuffer(0, TrendBuffer, INDICATOR_DATA);
  PlotIndexSetString(0, PLOT_LABEL, "Trend Line");
  PlotIndexSetInteger(0, PLOT_DRAW_TYPE, DRAW_COLOR_LINE);
  PlotIndexSetInteger(0, PLOT_LINE_WIDTH, 2);

  SetIndexBuffer(1, TrendColors, INDICATOR_COLOR_INDEX);
  PlotIndexSetInteger(0, PLOT_COLOR_INDEXES, 3);
  PlotIndexSetInteger(0, PLOT_LINE_COLOR, 0, colorUp);
  PlotIndexSetInteger(0, PLOT_LINE_COLOR, 1, colorDown);
  PlotIndexSetInteger(0, PLOT_LINE_COLOR, 2, clrGray);

  SetIndexBuffer(2, UpperBuffer, INDICATOR_DATA);
  PlotIndexSetString(1, PLOT_LABEL, "Upper Band");
  PlotIndexSetInteger(1, PLOT_DRAW_TYPE, DRAW_COLOR_LINE);
  PlotIndexSetInteger(1, PLOT_COLOR_INDEXES, 3);
  PlotIndexSetInteger(1, PLOT_LINE_COLOR, 0, colorUp);
  PlotIndexSetInteger(1, PLOT_LINE_COLOR, 1, colorDown);
  PlotIndexSetInteger(1, PLOT_LINE_COLOR, 2, clrGray);

  SetIndexBuffer(3, UpperColors, INDICATOR_COLOR_INDEX);

  SetIndexBuffer(4, LowerBuffer, INDICATOR_DATA);
  PlotIndexSetString(2, PLOT_LABEL, "Lower Band");
  PlotIndexSetInteger(2, PLOT_DRAW_TYPE, DRAW_COLOR_LINE);
  PlotIndexSetInteger(2, PLOT_COLOR_INDEXES, 3);
  PlotIndexSetInteger(2, PLOT_LINE_COLOR, 0, colorUp);
  PlotIndexSetInteger(2, PLOT_LINE_COLOR, 1, colorDown);
  PlotIndexSetInteger(2, PLOT_LINE_COLOR, 2, clrGray);

  SetIndexBuffer(5, LowerColors, INDICATOR_COLOR_INDEX);

  SetIndexBuffer(6, LowerRetestBuf, INDICATOR_DATA);
  PlotIndexSetString(3, PLOT_LABEL, "Lower Retest");
  PlotIndexSetInteger(3, PLOT_DRAW_TYPE, DRAW_ARROW);
  PlotIndexSetInteger(3, PLOT_LINE_COLOR, colorUp2);
  PlotIndexSetInteger(3, PLOT_ARROW, 225); // Triangle up

  SetIndexBuffer(7, UpperRetestBuf, INDICATOR_DATA);
  PlotIndexSetString(4, PLOT_LABEL, "Upper Retest");
  PlotIndexSetInteger(4, PLOT_DRAW_TYPE, DRAW_ARROW);
  PlotIndexSetInteger(4, PLOT_LINE_COLOR, colorDown2);
  PlotIndexSetInteger(4, PLOT_ARROW, 226); // Triangle down

  SetIndexBuffer(8, BullStepBuf, INDICATOR_DATA);
  PlotIndexSetString(5, PLOT_LABEL, "Bullish Step");
  PlotIndexSetInteger(5, PLOT_DRAW_TYPE, DRAW_ARROW);
  PlotIndexSetInteger(5, PLOT_LINE_COLOR, colorUp3);
  PlotIndexSetInteger(5, PLOT_ARROW, 159); // Circle

  SetIndexBuffer(9, BearStepBuf, INDICATOR_DATA);
  PlotIndexSetString(6, PLOT_LABEL, "Bearish Step");
  PlotIndexSetInteger(6, PLOT_DRAW_TYPE, DRAW_ARROW);
  PlotIndexSetInteger(6, PLOT_LINE_COLOR, colorDown3);
  PlotIndexSetInteger(6, PLOT_ARROW, 159); // Circle

  atrHandle = iATR(NULL, 0, 200);
  if (atrHandle == INVALID_HANDLE)
  {
    Print("Failed to create ATR handle");
    return(INIT_FAILED);
  }

  return(INIT_SUCCEEDED);
}

// OnDeinit
void OnDeinit(const int reason)
{
  IndicatorRelease(atrHandle);
}

// OnCalculate
int OnCalculate(const int rates_total,
                const int prev_calculated,
                const datetime &time[],
                const double &open[],
                const double &high[],
                const double &low[],
                const double &close[],
                const long &tick_volume[],
                const long &volume[],
                const int &spread[])
{
  if (rates_total < 1) return(0);

  ArraySetAsSeries(TrendBuffer, false);
  ArraySetAsSeries(TrendColors, false);
  ArraySetAsSeries(UpperBuffer, false);
  ArraySetAsSeries(UpperColors, false);
  ArraySetAsSeries(LowerBuffer, false);
  ArraySetAsSeries(LowerColors, false);
  ArraySetAsSeries(LowerRetestBuf, false);
  ArraySetAsSeries(UpperRetestBuf, false);
  ArraySetAsSeries(BullStepBuf, false);
  ArraySetAsSeries(BearStepBuf, false);
  ArraySetAsSeries(high, false);
  ArraySetAsSeries(low, false);
  ArraySetAsSeries(close, false);
  ArraySetAsSeries(time, false);

  ArrayResize(dirArray, rates_total);
  ArrayResize(barsInTrendArray, rates_total);
  ArrayResize(extensionArray, rates_total);

  double atrBuffer[];
  ArraySetAsSeries(atrBuffer, false);
  if (CopyBuffer(atrHandle, 0, 0, rates_total, atrBuffer) != rates_total) return(0);

  int limit = (prev_calculated == 0) ? 0 : prev_calculated - 1;

  static datetime currentBarTime = 0;
  static bool alertedLowerRetest = false;
  static bool alertedUpperRetest = false;
  static bool alertedBullStep = false;
  static bool alertedBearStep = false;

  if (time[ rates_total - 1 ] != currentBarTime)
  {
    currentBarTime = time[ rates_total - 1 ];
    alertedLowerRetest = false;
    alertedUpperRetest = false;
    alertedBullStep = false;
    alertedBearStep = false;
  }

  for (int i = limit; i < rates_total; i++)
  {
    double atr = atrBuffer[i];

    double stepBase = atr * 2.52;
    double maxStep = atr * maxStepAtr;
    double trigger = atr * flipMult;
    double offset = atr * 0.1; // Offset for positioning shapes

    if (atr == 0)
    {
      stepBase = 0;
      maxStep = 0;
      trigger = 0; // But will force no flip
    }

    if (i == 0)
    {
      TrendBuffer[i] = close[i];
      dirArray[i] = 0;
      barsInTrendArray[i] = 0;
      extensionArray[i] = 0;
    }
    else
    {
      double prevTrend = TrendBuffer[i-1];
      int prevDir = (int)dirArray[i-1];
      int prevBarsInTrend = (int)barsInTrendArray[i-1];
      int prevExtension = (int)extensionArray[i-1];

      bool startLong = close[i] > prevTrend + trigger;
      bool startShort = close[i] < prevTrend - trigger;

      if (atr == 0)
      {
        startLong = false;
        startShort = false;
      }

      bool flip = (startLong || startShort) && prevBarsInTrend >= 0;

      double stepSize = MathMin(stepBase + 0.0093 * prevBarsInTrend * atr, maxStep);

      if (flip && prevExtension <= 0)
      {
        TrendBuffer[i] = close[i];
        dirArray[i] = startLong ? 1 : -1;
        barsInTrendArray[i] = 1;
        extensionArray[i] = holdBars;
      }
      else
      {
        double add = (prevDir == 1 ? stepSize : (prevDir == -1 ? -stepSize : 0));
        TrendBuffer[i] = prevTrend + add;
        dirArray[i] = prevDir;
        barsInTrendArray[i] = prevBarsInTrend + 1;
        extensionArray[i] = MathMax(prevExtension - 1, 0);
      }
    }

    int trendDirection = (int)dirArray[i] == 1 ? 1 : ((int)dirArray[i] == -1 ? -1 : 0);

    if (atr == 0 && showFill)
    {
      UpperBuffer[i] = EMPTY_VALUE;
      LowerBuffer[i] = EMPTY_VALUE;
    }
    else
    {
      UpperBuffer[i] = showFill ? TrendBuffer[i] + atr * bandMult : EMPTY_VALUE;
      LowerBuffer[i] = showFill ? TrendBuffer[i] - atr * bandMult : EMPTY_VALUE;
    }

    if ((int)dirArray[i] == 1) TrendColors[i] = 0;
    else if ((int)dirArray[i] == -1) TrendColors[i] = 1;
    else TrendColors[i] = 2;

    UpperColors[i] = TrendColors[i];
    LowerColors[i] = TrendColors[i];

    bool crossUnder = false;
    bool crossOver = false;
    if (i > 0)
    {
      bool cu = (low[i-1] >= LowerBuffer[i-1] && low[i] < LowerBuffer[i]);
      bool co = (high[i-1] <= UpperBuffer[i-1] && high[i] > UpperBuffer[i]);

      if (TrendFilter)
      {
        crossUnder = cu && trendDirection == 1;
        crossOver = co && trendDirection == -1;
      }
      else
      {
        crossUnder = cu;
        crossOver = co;
      }
    }

    LowerRetestBuf[i] = (crossUnder && ChannelRetestSignal) ? low[i] - offset : EMPTY_VALUE;
    UpperRetestBuf[i] = (crossOver && ChannelRetestSignal) ? high[i] + offset : EMPTY_VALUE;

    bool trendStep = false;
    if (i > 0)
    {
      trendStep = ((int)dirArray[i] != 0) && (TrendBuffer[i] != TrendBuffer[i-1]) &&
                  ((TrendBuffer[i] > TrendBuffer[i-1] && (int)dirArray[i] == 1) ||
                   (TrendBuffer[i] < TrendBuffer[i-1] && (int)dirArray[i] == -1));
    }

    BullStepBuf[i] = (trendStep && (int)dirArray[i] == 1 && TrendStepSignal) ? high[i] : EMPTY_VALUE;
    BearStepBuf[i] = (trendStep && (int)dirArray[i] == -1 && TrendStepSignal) ? low[i] : EMPTY_VALUE;

    // Alerts
    if (i == rates_total - 1)
    {
      if (crossUnder && !alertedLowerRetest)
      {
        Alert("Lower Retest");
        alertedLowerRetest = true;
      }
      if (crossOver && !alertedUpperRetest)
      {
        Alert("Upper Retest");
        alertedUpperRetest = true;
      }
      if (trendStep && (int)dirArray[i] == 1 && !alertedBullStep)
      {
        Alert("Bullish Step");
        alertedBullStep = true;
      }
      if (trendStep && (int)dirArray[i] == -1 && !alertedBearStep)
      {
        Alert("Bearish Step");
        alertedBearStep = true;
      }
    }
  }

  return(rates_total);
}
These users thanked the author Pelle for the post (total 5):
ROI, Eis, xard777, asgariHoo, stond
