Written By: Rajeev Jain, jainraje@yahoo.com

Python code to implement concepts in Technical Analysis of S&C Magazine
January 2026 article "The Reversion Index" by John F Ehlers. This python
code is provided for TraderTips section of the magazine.

2025-11-12  Initial implementation
2025-11-14  Uploaded to github

https://github.com/jainraje/TraderTipArticles/

"""

# Import required python libraries

%matplotlib inline

import pandas as pd
import numpy as np
import yfinance as yf
import math
import datetime as dt
import matplotlib.pyplot as plt



# Use Yahoo Finance python package to obtain OHLCV data for desired instrument.

symbol = '^GSPC'
start = "2023-11-13"
end = dt.datetime.now().strftime('%Y-%m-%d')
end = '2025-11-15'
ohlcv = yf.download(
    symbol,
    start,
    end,
    group_by="Ticker",
    auto_adjust=True
)
ohlcv = ohlcv[symbol]
ohlcv



# three functions to implement concepts: 1) super_smoother 2) reversion_index
# and 3) plot_reversion_index to plot relevant signals

def super_smoother(price: pd.Series, period: float) -> pd.Series:
    """
    Vectorized Ehlers SuperSmoother filter (© John F. Ehlers)

    Parameters
    ----------
    price : pd.Series
        Input price series (e.g., closing prices)
    period : float
        Smoothing period

    Returns
    -------
    pd.Series
        Smoothed price series
    """
    q = np.exp(-1.414 * np.pi / period)
    c1 = 2 * q * np.cos(np.radians(1.414 * 180 / period))
    c2 = q * q
    a0 = (1 - c1 + c2) / 2

    price_vals = price.to_numpy()
    out_values = np.zeros_like(price_vals)

    # Initialize first four values to the original price
    out_values[:4] = price_vals[:4]

    # Apply recursive filter from index 4 onward
    for i in range(4, len(price_vals)):
        out_values[i] = a0 * (price_vals[i] + price_vals[i-1]) + c1 * out_values[i-1] - c2 * out_values[i-2]

    return pd.Series(out_values, index=price.index)


def reversion_index(close: pd.Series, length: int = 20) -> pd.DataFrame:
    """
    Ehlers Reversion Index (© 2025 John F. Ehlers)
    Correct and fully vectorized Python version.
    """
    close = close.astype(float)

    # Delta: change from previous bar
    delta = close.diff().fillna(0)

    # Rolling sums of delta and absolute delta
    delta_sum = delta.rolling(window=length, min_periods=1).sum()
    abs_delta_sum = delta.abs().rolling(window=length, min_periods=1).sum()

    # Ratio: safely avoid division by zero
    ratio = delta_sum / abs_delta_sum.replace(0, np.nan)
    ratio = ratio.fillna(0)

    # Smooth and trigger lines
    smooth = super_smoother(ratio, period=8)
    trigger = super_smoother(ratio, period=4)

    return pd.DataFrame({
        'ReversionSmooth': smooth,
        'ReversionTrigger': trigger
    }, index=close.index)


def plot_reversion_index(df):

    import matplotlib.pyplot as plt
    import matplotlib.dates as mdates

    fig, (ax1, ax2) = plt.subplots(2, 1, figsize=(12, 9), sharex=True, gridspec_kw={'height_ratios':[2,2]})

    # ----- Top: Price & SuperSmoother -----
    ax1.plot(df.index, df['Close'], label='Close', linewidth=1)
    ax1.plot(df.index, df['SuperSmoother'], label='SuperSmoother', linewidth=2, alpha=0.6, color='orange')

    # Shading for bullish/bearish signals
    ax1.fill_between(df.index, df['Close'].min(), df['Close'].max(),
                     where=df['Signal'] == 1, color='green', alpha=0.1)
    ax1.fill_between(df.index, df['Close'].min(), df['Close'].max(),
                     where=df['Signal'] == -1, color='red', alpha=0.1)

    ax1.set_title('Price & SuperSmoother with Signal')
    ax1.grid(True)
    ax1.legend(loc='center left', bbox_to_anchor=(1, 0.5))

    # ----- Bottom: ReversionSmooth & ReversionTrigger -----
    ax2.plot(df.index, df['ReversionSmooth'], label='ReversionSmooth', linewidth=1, color='red')
    ax2.plot(df.index, df['ReversionTrigger'], label='ReversionTrigger', linewidth=1, color='darkblue')
    ax2.axhline(0, color='gray', linestyle='--', linewidth=1)

    # Overlay Signal as step plot
    #ax2.step(df.index, df['Signal'], where='mid', label='Signal', color='purple', linewidth=1.5, alpha=0.5)

    ax2.set_title('Reversion Index with Signal')
    ax2.grid(True)
    ax2.legend(loc='center left', bbox_to_anchor=(1, 0.5))

    # ----- Improve date formatting on the bottom subplot -----
    ax2.xaxis.set_major_locator(mdates.AutoDateLocator())
    ax2.xaxis.set_major_formatter(mdates.ConciseDateFormatter(mdates.AutoDateLocator()))
    plt.setp(ax2.get_xticklabels(), rotation=0, ha='center')  # horizontal, centered

    #plt.xlabel('Date')
    plt.tight_layout()
    plt.show()




# Call functions to run required calculations. Set buy when ReversionTrigger
# swings above ReversionSmooth and sell for when ReversionTrigger swings below.
# Different period and lengths can be tested to determine optimum settings.

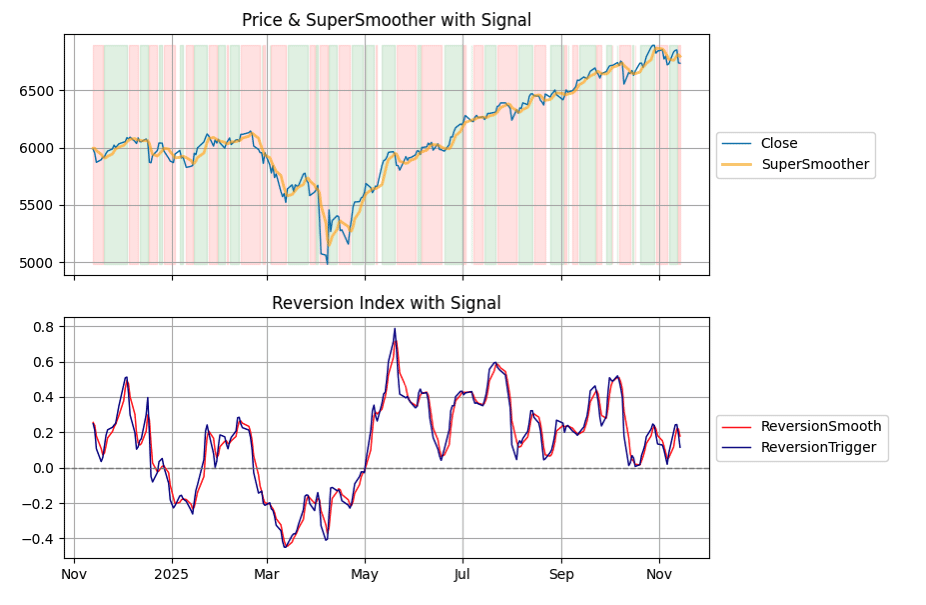

# Top plot close vs the SuperSmoother and red and white background shading to
# show highlight when buy and sell signals are active. Using slicing to plot
# last 1 year (aka 252 trading days).

df = ohlcv.copy()
df['SuperSmoother'] = super_smoother(df['Close'], period=10)
df = df.join(reversion_index(df['Close'], length=20))
df['Signal'] = np.where(df['ReversionTrigger'] > df['ReversionSmooth'], 1, -1)
plot_reversion_index(df[-252:])
