## T3 and T3 based indicators MT4

### T3 and T3 based indicators MT4

1
T3 and T3 based indicators MT4

The T3 was invented by Tim Tillson, the T3 was created as a sophisticated, Smoothed, Moving Average.

Tim Tilson's article on the T3 is described below.

Better Moving Averages Tim Tillson
November 1, 1998

Tim Tillson is a software project manager at Hewlett-Packard, with degrees in Mathematics and Computer Science. He has privately traded options and equities for 15 years.

Introduction

"Digital filtering includes the process of smoothing, predicting, differentiating, integrating, separation of signals, and removal of noise from a signal. Thus many people who do such things are actually using digital filters without realizing that they are; being unacquainted with the theory, they neither understand what they have done nor the possibilities of what they might have done."

This quote from R. W. Hamming applies to the vast majority of indicators in technical analysis. Moving averages, be they simple, weighted, or exponential, are lowpass filters; low frequency components in the signal pass through with little attenuation, while high frequencies are severely reduced.

"Oscillator" type indicators (such as MACD, Momentum, Relative Strength Index) are another type of digital filter called a differentiator.
Tushar Chande has observed that many popular oscillators are highly correlated, which is sensible because they are trying to measure the rate of change of the underlying time series, i.e., are trying to be the first and second derivatives we all learned about in Calculus.

We use moving averages (lowpass filters) in technical analysis to remove the random noise from a time series, to discern the underlying trend or to determine prices at which we will take action. A perfect moving average would have two attributes:

It would be smooth, not sensitive to random noise in the underlying time series. Another way of saying this is that its derivative would not spuriously alternate between positive and negative values.

It would not lag behind the time series it is computed from. Lag, of course, produces late buy or sell signals that kill profits.

The only way one can compute a perfect moving average is to have knowledge of the future, and if we had that, we would buy one lottery ticket a week rather than trade!

(See Appendix II below for more elaboration). Having said this, we can still improve on the conventional simple, weighted, or exponential moving averages. Here's how:

Two Interesting Moving Averages

We will examine two benchmark moving averages based on Linear Regression analysis.

In both cases, a Linear Regression line of length n is fitted to price data.

I call the first moving average ILRS, which stands for Integral of Linear Regression Slope. One simply integrates the slope of a linear regression line as it is successively fitted in a moving window of length n across the data, with the constant of integration being a simple moving average of the first n points. Put another way, the derivative of ILRS is the linear regression slope. Note that ILRS is not the same as a SMA (simple moving average) of length n, which is actually the midpoint of the linear regression line as it moves across the data.

We can measure the lag of moving averages with respect to a linear trend by computing how they behave when the input is a line with unit slope. Both SMA(n) and ILRS(n) have lag of n/2, but ILRS is much smoother than SMA.

Our second benchmark moving average is well known, called EPMA or End Point Moving Average. It is the endpoint of the linear regression line of length n as it is fitted across the data. EPMA hugs the data more closely than a simple or exponential moving average of the same length. The price we pay for this is that it is much noisier (less smooth) than ILRS, and it also has the annoying property that it overshoots the data when linear trends are present.

However, EPMA has a lag of 0 with respect to linear input! This makes sense because a linear regression line will fit linear input perfectly, and the endpoint of the LR line will be on the input line.

These two moving averages frame the tradeoffs that we are facing. On one extreme we have ILRS, which is very smooth and has considerable phase lag. EPMA has 0 phase lag, but is too noisy and overshoots. We would like to construct a better moving average which is as smooth as ILRS, but runs closer to where EPMA lies, without the overshoot.

A easy way to attempt this is to split the difference, i.e. use (ILRS(n)+EPMA(n))/2. This will give us a moving average (call it IE/2) which runs in between the two, has phase lag of n/4 but still inherits considerable noise from EPMA. IE/2 is inspirational, however. Can we build something that is comparable, but smoother? Figure 1 shows ILRS, EPMA, and IE/2.

Filter Techniques

Any thoughtful student of filter theory (or resolute experimenter) will have noticed that you can improve the smoothness of a filter by running it through itself multiple times, at the cost of increasing phase lag.

There is a complementary technique (called twicing by J.W. Tukey) which can be used to improve phase lag. If L stands for the operation of running data through a low pass filter, then twicing can be described by:

`L' = L(time series) + L(time series - L(time series))`

That is, we add a moving average of the difference between the input and the moving average to the moving average. This is algebraically equivalent to:

`2L-L(L)`

This is the Double Exponential Moving Average or DEMA, popularized by Patrick Mulloy in TASAC (January/February 1994).

In our taxonomy, DEMA has some phase lag (although it exponentially approaches 0) and is somewhat noisy, comparable to IE/2 indicator.

We will use these two techniques to construct our better moving average, after we explore the first one a little more closely.

Fixing Overshoot

An n-day EMA has smoothing constant `alpha=2/(n+1) and a lag of (n-1)/2.`

Thus EMA(3) has lag 1, and EMA(11) has lag 5. Figure 2 shows that, if I am willing to incur 5 days of lag, I get a smoother moving average if I run EMA(3) through itself 5 times than if I just take EMA(11) once.

This suggests that if EPMA and DEMA have 0 or low lag, why not run fast versions (eg DEMA(3)) through themselves many times to achieve a smooth result? The problem is that multiple runs though these filters increase their tendency to overshoot the data, giving an unusable result. This is because the amplitude response of DEMA and EPMA is greater than 1 at certain frequencies, giving a gain of much greater than 1 at these frequencies when run though themselves multiple times. Figure 3 shows DEMA(7) and EPMA(7) run through themselves 3 times. DEMA^3 has serious overshoot, and EPMA^3 is terrible.

The solution to the overshoot problem is to recall what we are doing with twicing:

`DEMA(n) = EMA(n) + EMA(time series - EMA(n))`

The second term is adding, in effect, a smooth version of the derivative to the EMA to achieve DEMA. The derivative term determines how hot the moving average's response to linear trends will be. We need to simply turn down the volume to achieve our basic building block:

`EMA(n) + EMA(time series - EMA(n))*.7;`

This is algebraically the same as:

`EMA(n)*1.7-EMA(EMA(n))*.7;`

I have chosen .7 as my volume factor, but the general formula (which I call "Generalized Dema") is:

`GD(n,v) = EMA(n)*(1+v)-EMA(EMA(n))*v, `

Where v ranges between 0 and 1. When v=0, GD is just an EMA, and when v=1, GD is DEMA. In between, GD is a cooler DEMA. By using a value for v less than 1 (I like .7), we cure the multiple DEMA overshoot problem, at the cost of accepting some additional phase delay. Now we can run GD through itself multiple times to define a new, smoother moving average T3 that does not overshoot the data:

`T3(n) = GD(GD(GD(n)))`

In filter theory parlance, T3 is a six-pole non-linear Kalman filter. Kalman filters are ones which use the error (in this case (time series - EMA(n)) to correct themselves. In Technical Analysis, these are called Adaptive Moving Averages; they track the time series more aggressively when it is making large moves.

The EPMA(15) is blue, the T3(6) is red, the IE/2(15) is yellow and the ILRS(15) is green in the MetaStock platform.

I used Metastock 6.5 to compare 5 moving averages (SMA, ILRS, EMA, DEMA and T3) on the Nasdaq index (NDX) from 7/19/93 to 6/30/97, almost four years of data. I set the interest rate at 4% annualized, and a trading cost of .1% for entry and exit. This is realistic, since I can trade up to 1000 shares through Fidelity Web Express for \$14.95, and a typical trade might be 300 shares of a \$50 stock.

The system used was very simple. A moving average was computed using each of the five above. A derivative was taken (1 period Rate of Change function, ROC). A long position was entered at bottoms, and closed at tops, of the derivative. No shorts were taken. For example, the code for "enter long" for an EMA was:

Code: Select all

``````res:=Mov(C,opt1,E);
d1:=ROC(res,1,points);
d1 > Ref(d1,-1) AND Ref(d1,-1) < Ref(d1,-2)
``````

I let opt1 vary from 2 to 10. This is a fast system, which executes a lot of trades. The table below summarizes the best results each MA was able to achieve; note that the optimal parameters did not vary widely.

MA Optimal Parameter Best APR ILRS 7 19.02 SMA 8 20.20 EMA 8 28.17 DEMA 7 28.81 T3 5 (volume = .7) 33.59 No single set of backtesting results is conclusive, of course. But these numbers confirm that T3 has merit - it not only looks good to the eye on the chart, but can be a powerful building block in other indicators and trading systems.

PS: To download the article in PDF format, please see here: Smoothing Techniques For More Accurate Signals by Tim Tillson, November 1 1998 (IE2 and T3 indicator guide).

### Re: T3 and T3 based indicators

2

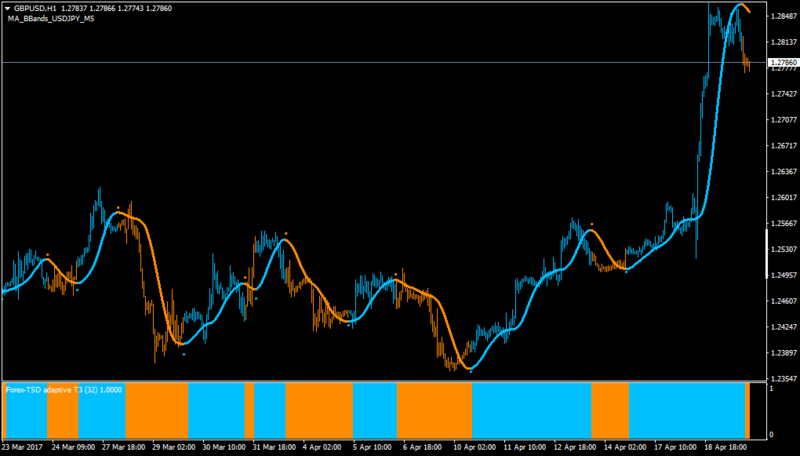

Double smoothed T3
This is a T3 that can be Double Smoothed too - as with the rest of Averages,this type of smoothing is actually faster than the original calculation - the version with 20 optional prices - double smooth true/false
Indicator is just a tool.

Use it only if it can benefit you. Leave it if you don't know how to use it optimally.

### Re: T3 and T3 based indicators

3

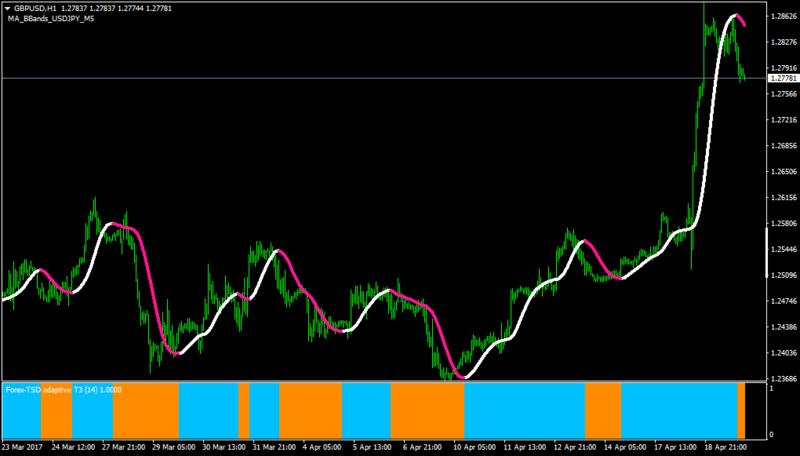

Double smoothed T3 histo
Here is histo version of it
Indicator is just a tool.

Use it only if it can benefit you. Leave it if you don't know how to use it optimally.

### Re: T3 and T3 based indicators

4

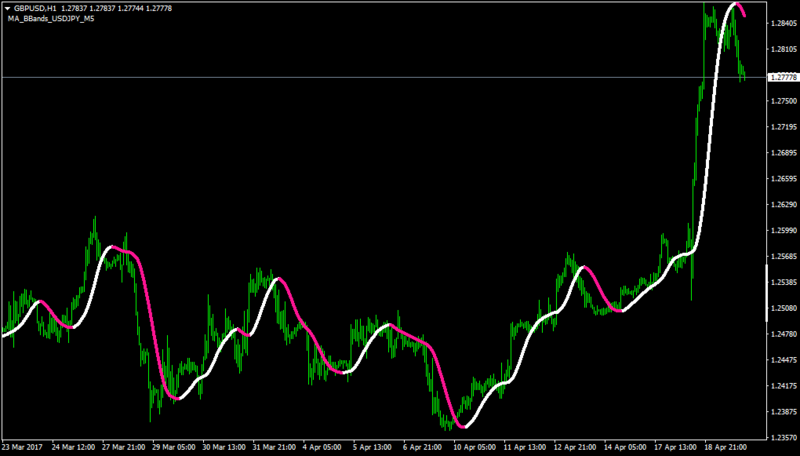

Double smoothed T3 1.1

Some upgrades to the double smoothed T3 made - mainly made more efficient code,to make it less CPU intensive
Indicator is just a tool.

Use it only if it can benefit you. Leave it if you don't know how to use it optimally.

### Re: T3 and T3 based indicators

5

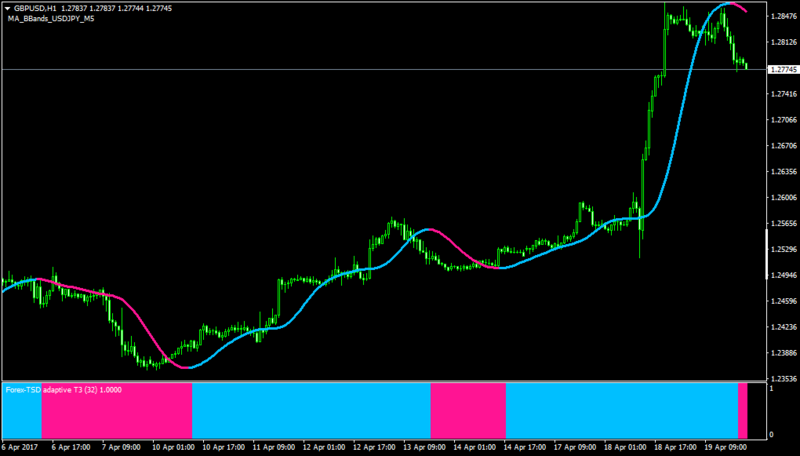

Double smoothed T3 1.2

This is the version of double smoothed T3 with all the possible display type functions
Indicator is just a tool.

Use it only if it can benefit you. Leave it if you don't know how to use it optimally.

### Re: T3 and T3 based indicators

6

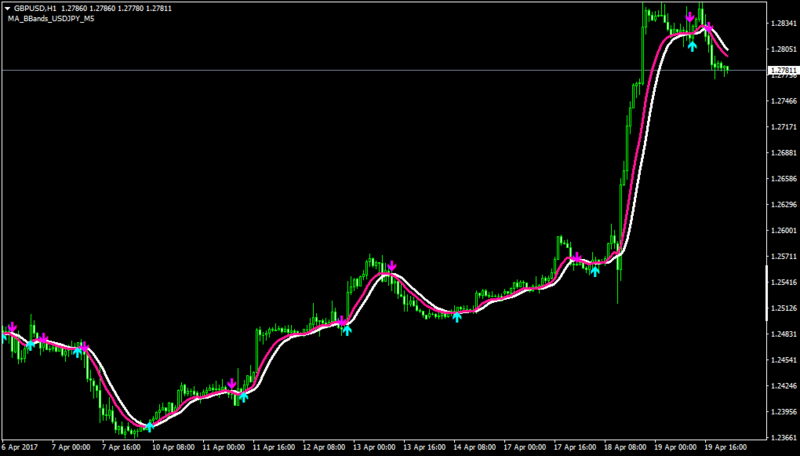

In this Heiken Ashi Ma T3 version you can have usual MA periods and methods,better formula,T3 Average and T3 true/false with alerts
Seems HA lines version but experts can better guide us
Indicator is just a tool.

Use it only if it can benefit you. Leave it if you don't know how to use it optimally.

### Re: T3 and T3 based indicators

7

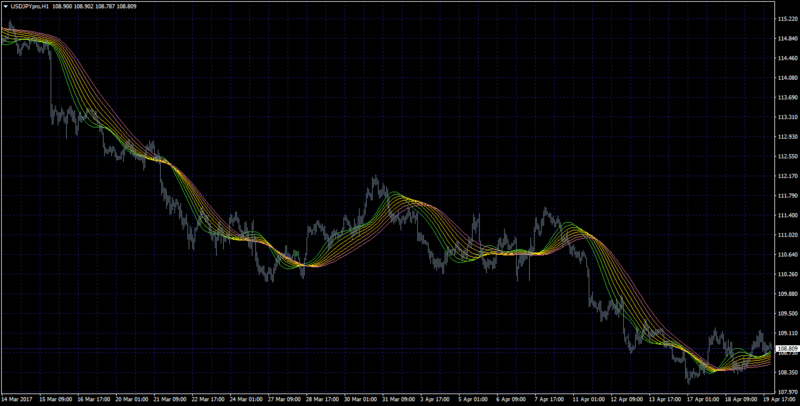

This is T3 taotra, the chart version.

### Re: T3 and T3 based indicators

8

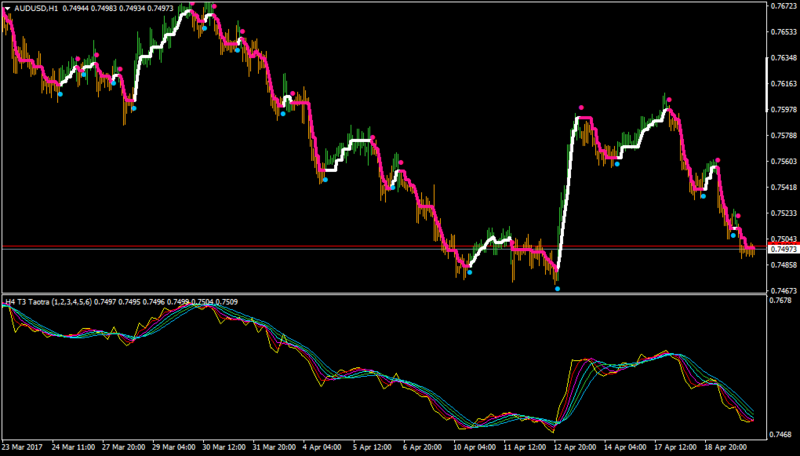

T3.Taotra + mtf
And a sw version of T3 Taotra with mtf interpolated
Indicator is just a tool.

Use it only if it can benefit you. Leave it if you don't know how to use it optimally.

### Re: T3 and T3 based indicators

9

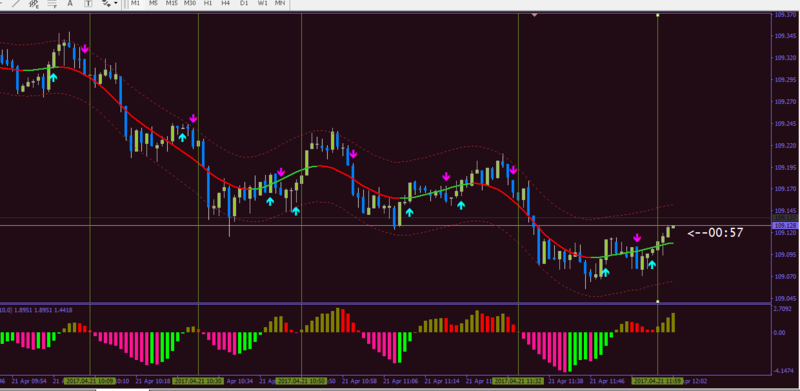

mntiwana wrote: Thu Apr 20, 2017 6:15 am Heiken Ashi Ma T3 lines+arrows+alerts

In this Heiken Ashi Ma T3 version you can have usual MA periods and methods,better formula,T3 Average and T3 true/false with alerts
Seems HA lines version but experts can better guide us

mtiwana, good one..
i do like to know more about the settings to be tuned for 5min.
This indicator more helps me to take trade to the flow of market trend. the arrow paint for the next bar not in live PA
"There is NO GOD higher than TRUTH" - Mahatma Gandhi

### Re: T3 and T3 based indicators

10
sal wrote: Fri Apr 21, 2017 6:55 pm mtiwana, good one..
i do like to know more about the settings to be tuned for 5min.
This indicator more helps me to take trade to the flow of market trend. the arrow paint for the next bar not in live PA
sal
A user should play,exercise with available parameters to turn the indicator fit with his strategy
Indicator is just a tool.

Use it only if it can benefit you. Leave it if you don't know how to use it optimally.
